SCHNEIDER COMPACT NSX160N MCCB BREAKER, 50KA AT 415VAC, 3P 3D, TMD 160A

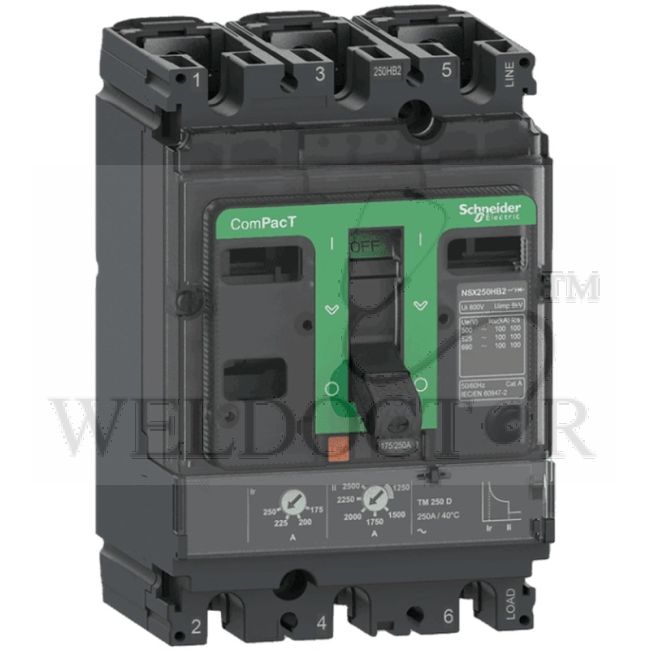

This ComPacT NSX160N is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160N is part of Schneider Electric EcoStruxure Power architecture.

Specifications:

• Breaking Capacity: 10 kA at 600 V AC 50/60 Hz conforming to UL 508
• Breaking Capacity Code: N 50 kA 415 V AC
• Contacts Type And Composition: 160 A at 40 °C
• Control Type: toggle
• Product Or Component Type: circuit breaker
• Range Of Product: ComPacT NSX100...250 new generation
• Trip Unit Name: TM-D
• [Ie] Rated Operational Current: toggle
• [Ue] Rated Operational Voltage: 690 V AC 50/60 Hz
• Device Short Name: NSX160N
• EAN13: 3606481997821
• Mounting Support: backplate
• Network Type: AC
• Protected Poles Description: 3t
• Range: ComPacT new generation
• Range Name: ComPacT NSX (2021)
• Suitability For Isolation: yes conforming to EN/IEC 60947-2
• Trip Unit Protection Functions: LI
• Trip Unit Technology: thermal-magnetic
• Utilisation Category: category A
• Communication Network Type: 690 V AC 50/60 Hz
• Current Transformer Type: N 50 kA 415 V AC
• Interlocked Device: 10 kA at 600 V AC 50/60 Hz conforming to UL 508
• Product Name: ComPacT NSX new generation
• [Ics] Rated Service Breaking Capacity: 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
• [In] Rated Current: 160 A at 40 °C
• Compatibility Code: NSX160
• Connection Pitch: 35 mm
• Depth: 86 mm
• Device Application: distribution
• Downside Connection: front
• Earth-leakage Protection: without
• Electrical Durability: 15000 cycles at 690 V In/2
• Height: 161 mm
• Long Time Delay Adjustment Type: fixed
• Long Time Pick-up Adjustment Range: 0.7...1 x In
• Long Time Pick-up Adjustment Type Ir: adjustable
• Mechanical Durability: 40000 cycles
• Mounting Mode: fixed
• Net Weight: 2.2 kg
