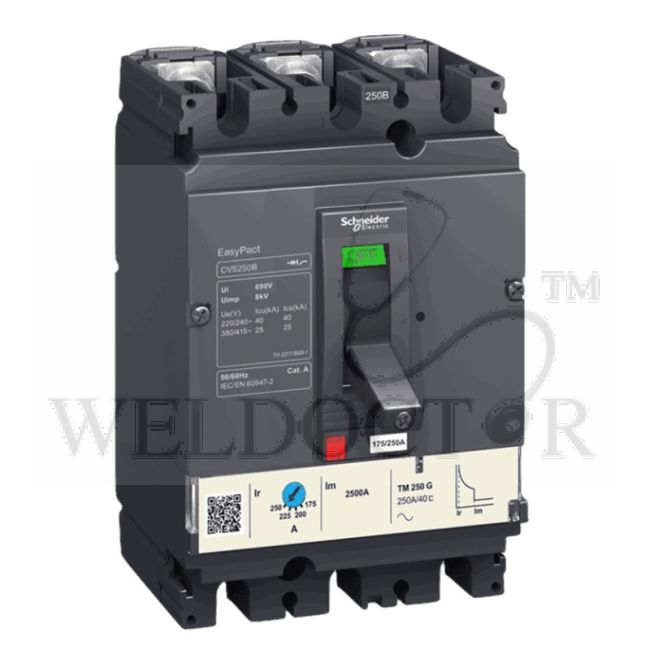

SCHNEIDER EASYPACT CVS100B MCCB BREAKER, 25 KA AT 415 VAC, 3P 3D, TMD 80A

EasyPact CVS100B circuit breaker, 25 kA at 415 VAC, 3P 3d, TM D 80 A trip unit. Label : EasyPact CVS Range : EasyPact Earth Leakage protection : without [In] rated current : Breaking capacity code : B Network type : AC Range of product : Easypact CVS100...250-[Ue] rated operational voltage : Breaking capacity : Utilisation category : category A Product name : EasyPact CVS Suitability for isolation : Product or component type : circuit breaker Trip unit name : TM D Trip unit technology : thermal Magnetic Trip unit rating : Protection type : overload protection (thermal),short-circuit protection (magnetic) Device short name : CVS100B Device application : distribution-poles description : 3P Protected poles description : 3d Range Presentation : EasyPact CVS range is the easy choice for quality and value. Designed to meet the requirements of the majority of common protection applications in small to medium-sized buildings, EasyPact CVS circuit breakers deliver a high level of performance and cost-saving functionality that is unusual in their price range. Rated current from 16 to 630 A Breaking capacity from 25 to 50 kA at 400/415 V 3 and 4 pole versions 3 frame sizes Thermal Magnetic and electronic protection available for the entire range Extended, adjustable thermal protection from 0.7 to 1 times (TMD) or 0.5 to 1 times (electronic) the rating of the trip unit Common accessories and auxiliaries with other Schneider Electric MCCB offers Suitable for isolation Earth Leakage protection by associated Vigi Module Switch Disconnector versions also available Compliance with international standards : IEC 60947-2, CCC, EAC and other local certifications Green Premium product Range Benefits : Specifiers – Conforms to international standards : IEC60947-2, and meets the requirements of the majority of common protection applications Panel builders – Ease of installation. Only three frame sizes up to 630 A. Common accessories for complete range. Economic and competitive solution, yet meets major requirements of specifiers and clients OEMs – High endurance and maintenance free operation ensures continuous performance of machines Clients – Well balance of budget and quality, performance, reliability Range Application Presentation : Protection and management of low-voltage electrical installations : Standard applications : industries, buildings Earth Leakage protection Motor protection Generator protection Switch Disconnectors

Specifications:

• Breaking Capacity: 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
• Breaking Capacity Code: B
• Contacts Type And Composition: 100 A at 40 °C
• Control Type: toggle
• Product Or Component Type: circuit breaker
• Range Of Product: EasyPact CVS100...250
• Trip Unit Name: TM-D
• [Ie] Rated Operational Current: toggle
• Device Short Name: CVS100B
• EAN13: 3606480220135
• Mounting Support: backplate
• Network Type: AC
• Protected Poles Description: 3d
• Range: EasyPact
• Range Name: EasyPact CVS
• Trip Unit Technology: thermal-magnetic
• Utilisation Category: category A
• Current Transformer Type: B
• Interlocked Device: 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
• Product Name: EasyPact CVS
• [Ics] Rated Service Breaking Capacity: 15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
• [In] Rated Current: 100 A at 40 °C
• Compatibility Code: CVS100
• Connection Pitch: 35 mm
• Connections - Terminals: screw connection
• Contact Position Indicator: yes
• Depth: 86 mm
• Device Application: distribution
• Downside Connection: front
• Earth-leakage Protection: without
• Electrical Durability: 12000 cycles 415 V In conforming to IEC 60947-2
• Height: 161 mm
• Instantaneous Pick-up Adjustment Range: 640 A
• Instantaneous Pick-up Adjustment Type Ii: fixed
• Long Time Delay Adjustment Type: fixed
• Long Time Pick-up Adjustment Range: 0.7...1 x In
• Long Time Pick-up Adjustment Type Ir: adjustable
• Mechanical Durability: 30000 cycles
• Mounting Mode: fixed
• Net Weight: 1.8 kg
