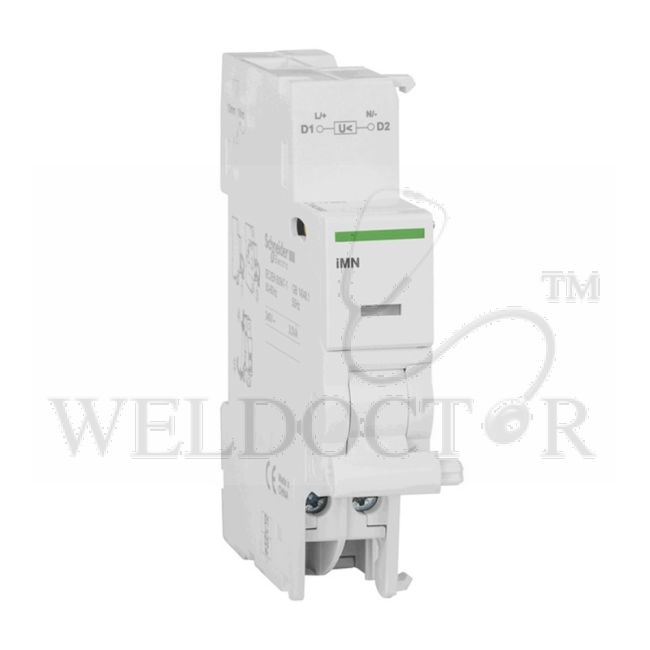

SCHNEIDER VOLTAGE RELEASE - IMN - TRIPPING UNIT - 220..240 VAC

Voltage release iMN Tripping unit 220..240 VAC. Label : Acti 9 iC60 Range : Acti 9 [Uc] control circuit voltage : 220...240 V AC 50/60 Hz Product or component type : undervoltage release Control type : standard Range of product : iSW NA,iDPN Vigi,iID,iC60 9 mm pitches : 2 Device short name : iMN Product compatibility : ARA,iDPN Vigi,iSW NA,RCA,single terminal,iID,iC60,double terminal Range Presentation : With exclusive features, the Acti 9 iC60 DIN rail MCB is definitely geared to absolute safety and improved continuity of service. VisiSafe : for safe operation and maintenance work on circuits. Class-2 insulation : continuous safety for operators and unqualified personnel. VisiTrip : detects faulty Miniature Circuit Breaker outgoers quickly and reduces intervention time. Add-on fully immune earth leakage protection devices : better continuity of service, especially in polluted environments and networks. Nominal current : 1 to 63 A Large choice of breaking capacities up to 100 kA and tripping curves : B, C, D, Compliance with standards IEC/EN 60898 or IEC/EN 60947-2, Full coordination with Acti 9 range Residual Current Devices (RCDs) and Compact NSX Moulded Case Circuit Breakers (MCCBs), Suitable for isolation in accordance with industrial standard IEC 60947 Operating voltage : up to 440 V AC, insulation voltage : 500 V Optional add-on earth leakage modules : iC60 Vigi, Optional auxiliaries : indication of state and tripping, shunt tripping, undervoltage tripping, overvoltage tripping, Range Benefits : The new reference in final distribution, Absolute safety of circuit protection with VisiSafe, Greater continuity of service with VisiTrip, Simple to choose with meaningful part numbers, Easy to install with quick, ergonomic & safe IP20B terminal shutters & robust connections (twice the standard tightening torque), Environmentally friendly with 100% recyclable & recoverable materials. Range Application Presentation : Low-voltage final distribution Protection of electrical circuits in all industrial and commercial buildings, All applications, especially in polluted environments and networks, Motor circuit protection, DC current circuit protection.

Specifications:

• Control Type: standard
• Product Or Component Type: undervoltage release
• Range Of Product: iC60
• [Ie] Rated Operational Current: standard
• [Uc] Control Circuit Voltage: 220...240 V AC 50/60 Hz
• Device Short Name: iMN
• EAN13: 3606480087998
• Mounting Support: DIN rail
• Range: Acti 9
• Range Compatibility: Acti 9 ARA
• Range Name: Acti 9 iC60
• 9 Mm Pitches: 2
• Colour: white
• Compatibility Code: iMN
• Connections - Terminals: clamp terminal - 1 cable(s) 6-6 mm² - flexible
• Local Signalling: action indicator
• Market Segment: residential
• Mounting Mode: clip-on
• Product Compatibility: ARA
• Tightening Torque: 1-1 N.m
• Width: 18 mm
• Ambient Air Temperature For Operation: -25-50 °C
• Ambient Air Temperature For Storage: -40-85 °C
• Relative Humidity: 95-95 % at 55-55 °C
• Standards: EN/IEC 60947-5-1
• Tropicalisation: 2 conforming to EN/IEC 60947-5-1
• Poles Description: undervoltage release
• [Us] Rated Supply Voltage: iC60
