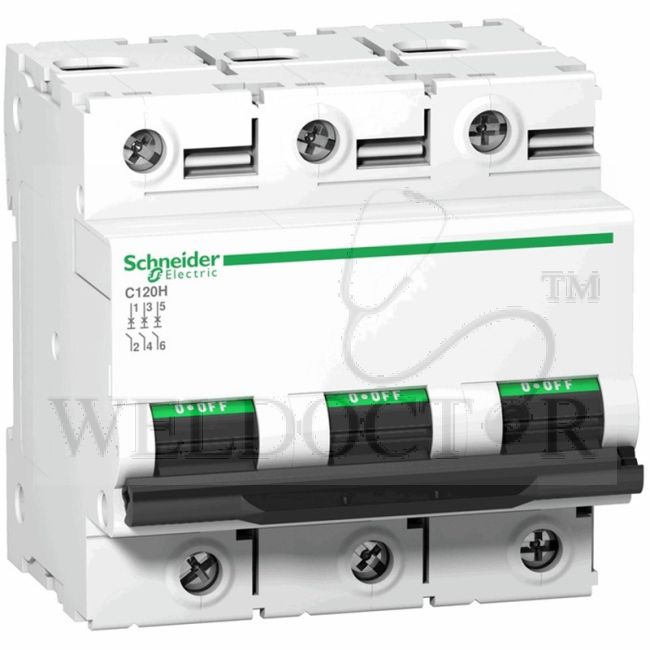

SCHNEIDER MINIATURE CIRCUIT-BREAKER (MCB), ACTI9 C120H, 3P, C, 100A

C120H Circuit breaker 3P 100A C curve. Label : C120 Range of product : C120 [In] rated current : 100 A at 30 °C Network type : AC Trip unit technology : thermal Magnetic Curve code : C Breaking capacity code : H Breaking capacity : N/A, N/A, N/A, N/A, N/A Range : Acti 9 Suitability for isolation : yes conforming to IEC 60947-2 Product name : C120 Product or component type : miniature circuit-breaker Device short name : C120H Device application : distribution Poles description : 3P Number of protected poles : 3 Range Presentation- Range Benefits : Quality without boundaries The C120 circuit-breaker, derived directly from the C60, is recognised in over 100 countries for its quality and the breadth of its range, making it an indispensable component for developing low voltage installations with complete peace of mind. Range Application Presentation : Protection of electrical circuits in all industrial and tertiary buildings

Specifications:

• Breaking Capacity: 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
• Breaking Capacity Code: H
• Contacts Type And Composition: 100 A at 30 °C
• Control Type: toggle
• Product Or Component Type: miniature circuit-breaker
• Range Of Product: C120
• [Ie] Rated Operational Current: toggle
• Curve Code: C
• Device Short Name: C120H
• EAN13: 3606480380402
• Mounting Support: 35 mm symmetrical DIN rail
• Network Type: AC
• Number Of Protected Poles: 3
• Range: Acti 9
• Range Name: Acti 9 C120
• Suitability For Isolation: yes conforming to IEC 60947-2
• Trip Unit Technology: thermal-magnetic
• Current Transformer Type: H
• Interlocked Device: 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
• Product Name: C120
• [Ics] Rated Service Breaking Capacity: 15 kA 100 % conforming to EN/IEC 60947-2 -
• [In] Rated Current: 100 A at 30 °C
• 9 Mm Pitches: 9
• Colour: white
• Comb Busbar And Distribution Block Compatibility: no
• Compatibility Code: C120
• Connections - Terminals: tunnel type terminals1.5-35 mm² flexible
• Contact Position Indicator: yes
• Depth: 73 mm
• Device Application: distribution
• Earth-leakage Protection: separate block
• Electrical Durability: 5000 cycles conforming to IEC 60947-2
• Height: 81 mm
• Limitation Class: 3 conforming to EN/IEC 60947-2
• Local Signalling: ON/OFF indication
• Magnetic Tripping Limit: 5...10 x In
• Market Segment: residential
• Mechanical Durability: 20000 cycles
• Mounting Mode: clip-on
• Net Weight: 0.615 kg
