SCHNEIDER COMPACT NSX160F MCCB BREAKER, 36KA AT 415VAC, 3P 3D, TMD 80A

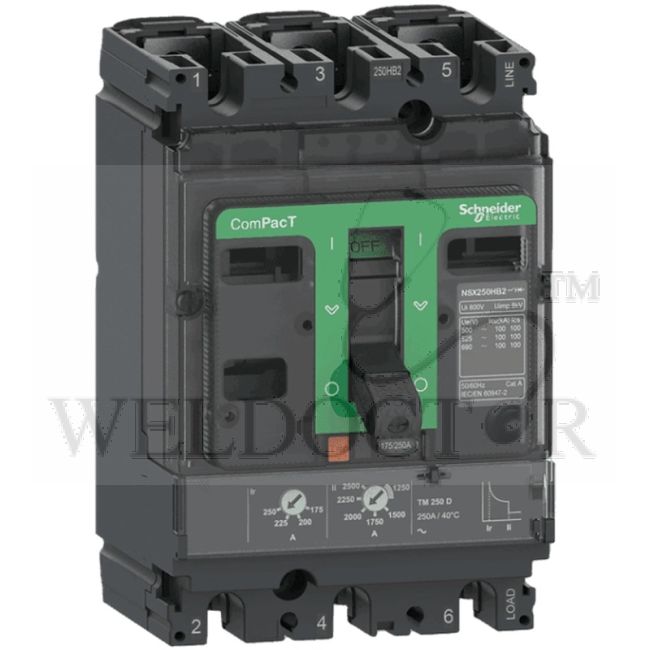

This ComPacT NSX160F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160F is part of Schneider Electric EcoStruxure Power architecture.

Specifications:

• Breaking Capacity: 10 kA at 600 V AC 50/60 Hz conforming to UL 508
• Breaking Capacity Code: F 36 kA 415 V AC
• Contacts Type And Composition: 125 A at 40 °C
• Control Type: toggle
• Product Or Component Type: circuit breaker
• Range Of Product: ComPacT NSX100...250 new generation
• Trip Unit Name: TM-D
• [Ie] Rated Operational Current: toggle
• [Ue] Rated Operational Voltage: 690 V AC 50/60 Hz
• Device Short Name: NSX160F
• EAN13: 3606481997098
• Mounting Support: backplate
• Network Type: AC
• Protected Poles Description: 3t
• Range: ComPacT new generation
• Range Name: ComPacT NSX (2021)
• Suitability For Isolation: yes conforming to EN/IEC 60947-2
• Trip Unit Protection Functions: LI
• Trip Unit Technology: thermal-magnetic
• Utilisation Category: category A
