MAKITA JS1602 SHEAR 1.6MM SPARE PARTS

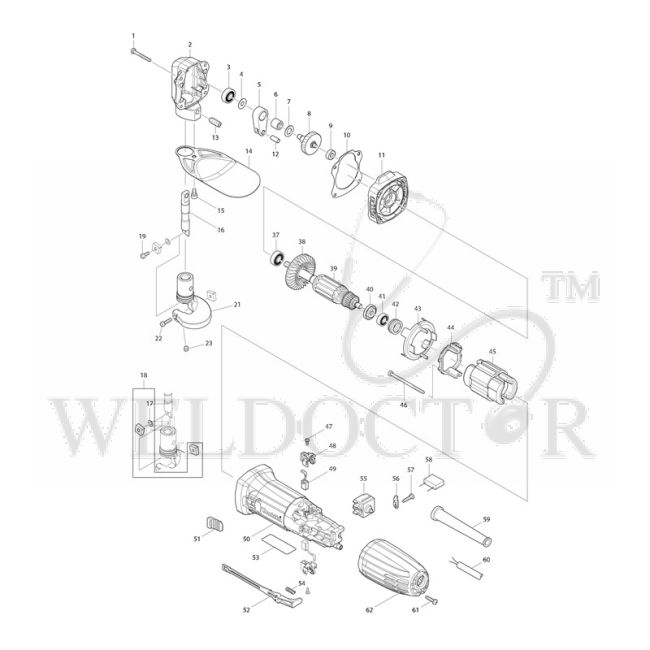

Spare Parts of Makita JS1602 Shear Ref. No. Part Name & Number Price 001 MAKITA TAPPING SCREW FLANGE PT 4X35 FOR 4323M P/N:266053-1 Part No.: 266053-1 $0.44 Add To Cart 002 MAKITA GEAR HOUSING COMPLETE FOR JS1602 P/N:141691-9 Part No.: 141691-9 $44.91 Add To Cart 003 MAKITA BALL BEARING 627ZZ FOR MT811 P/N:210030-5 Part No.: 210030-5 $1.20 Add To Cart 004 MAKITA FLAT WASHER 7 FOR LS1040 Part No.: 253823-7 $0.33 Add To Cart 005 MAKITA ROD FOR JS1600 Part No.: 331151-1 $3.27 Add To Cart 006 MAKITA NEEDLE BEARING 1012 FOR 6910 P/N:212063-6 Part No.: 212063-6 $4.80 Add To Cart 007 MAKITA FLAT WASHER 10 FOR 906H P/N:253758-2 Part No.: 253758-2 $0.33 Add To Cart 008 MAKITA CRANK SHAFT COMPLETE FOR JS1602 P/N:141690-1 Part No.: 141690-1 $40.00 Add To Cart 010 MAKITA GASKET FOR JS1602 P/N:442185-0 Part No.: 442185-0 $1.31 Add To Cart 011 MAKITA GEAR HOUSING COVER FOR JS1602 P/N:454076-3 Part No.: 454076-3 $6.10 Add To Cart 012 MAKITA PIN 6 FOR JS1600 P/N:256110-3 Part No.: 256110-3 $0.98 Add To Cart 013 MAKITA SET SCREW M8X16 FOR JS1600 P/N:913427-4 Part No.: 913427-4 $0.87 Add To Cart 014 MAKITA PROTECTOR FOR JS1602 P/N:346620-9 Part No.: 346620-9 $3.16 Add To Cart 015 MAKITA HEX. SOCKET HEAD BOLT M5X10 FOR JS1600 P/N:922206-9 Part No.: 922206-9 $0.33 Add To Cart 016 MAKITA BLADE HOLDER FOR JS1600 Part No.: 321311-3 $25.94 Add To Cart 017 MAKITA THIN WASHER 5 FOR JS1600 P/N:253334-2 Part No.: 253334-2 $0.55 Add To Cart 021 MAKITA YOKE FOR JS1600 P/N: 311717-3 Part No.: 311717-3 $170.69 Add To Cart 022 MAKITA HEX. SOCKET HEAD BOLT M4X16 FOR JN3200 P/N:922127-5 Part No.: 922127-5 $0.33 Add To Cart 023 MAKITA HEX. SOCKET HEAD BOLT M6X6 FOR JS1600 P/N:251986-3 Part No.: 251986-3 $0.33 Add To Cart 037 MAKITA BALL BEARING 608DDW FOR HR4000C/PV7000C P/N:210005-4 Part No.: 210005-4 $1.53 Add To Cart 038 MAKITA FAN 56 FOR 9553NB P/N:240076-7 Part No.: 240076-7 $0.87 Add To Cart 039 MAKITA ARMATURE 240V FOR JS1601 P/N:517674-5 Part No.: 517674-5 $51.67 Add To Cart 040 MAKITA INSULATION WASHER FOR 4304 P/N:681636-0 Part No.: 681636-0 $0.33 Add To Cart 041 MAKITA BALL BEARING 607ZZ FOR MT950 P/N:210062-2 Part No.: 210062-2 $0.98 Add To Cart 043 MAKITA BAFFLE PLATE FOR GA4030 Part No.: 450796-7 $0.44 Add To Cart 044 MAKITA SPACER FOR JS1000 P/N:452073-3 Part No.: 452073-3 $3.05 Add To Cart 045 MAKITA FIELD FOR JS1601 P/N:623549-9 Part No.: 623549-9 $21.36 Add To Cart 046 MAKITA TAPPING SCREW 4X70 FOR 9526B P/N:266004-4 Part No.: 266004-4 $0.76 Add To Cart 047 MAKITA TAPPING SCREW BIND PT3X8 FOR 2012NB P/N:265954-0 Part No.: 265954-0 $0.11 Add To Cart 048 MAKITA BRUSH HOLDER FOR GA4030 P/N:643839-4 Part No.: 643839-4 $1.31 Add To Cart 050 MAKITA MOTOR HOUSING FOR GA4030 P/N:450795-9 Part No.: 450795-9 $6.54 Add To Cart 051 MAKITA SWITCH KNOB FOR MT953 P/N:418016-5 Part No.: 418016-5 $0.33 Add To Cart 052 MAKITA SWITCH LEVER FOR GA4030 P/N:450797-5 Part No.: 450797-5 $0.55 Add To Cart 054 MAKITA SPRING 4 FOR DC/AC-GA P/N:233121-5 Part No.: 233121-5 $0.11 Add To Cart 055 MAKITA SWITCH DPX-2110-R DOUBLE FOR 9556NB P/N:650621-4 Part No.: 650621-4 $2.94 Add To Cart 056 MAKITA CORD CLAMP P/N:687682-1 Part No.: 687682-1 $0.33 Add To Cart 057 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 059 MAKITA CORD GUARD 10 FOR HR2020 P/N:682566-8 Part No.: 682566-8 $0.76 Add To Cart 060 MAKITA POWER S.CORD BS 1.0-2-2.5 P/N:692527-0 Part No.: 692527-0 $12.21 Add To Cart 061 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 062 MAKITA REAR COVER FOR JS1602 P/N:453884-9 Part No.: 453884-9 $6.43 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA TAPPING SCREW FLANGE PT 4X35 FOR 4323M P/N:266053-1 Part No.: 266053-1
• 002: MAKITA GEAR HOUSING COMPLETE FOR JS1602 P/N:141691-9 Part No.: 141691-9
• 003: MAKITA BALL BEARING 627ZZ FOR MT811 P/N:210030-5 Part No.: 210030-5
• 004: MAKITA FLAT WASHER 7 FOR LS1040 Part No.: 253823-7
• 005: MAKITA ROD FOR JS1600 Part No.: 331151-1
• 006: MAKITA NEEDLE BEARING 1012 FOR 6910 P/N:212063-6 Part No.: 212063-6
• 007: MAKITA FLAT WASHER 10 FOR 906H P/N:253758-2 Part No.: 253758-2
• 008: MAKITA CRANK SHAFT COMPLETE FOR JS1602 P/N:141690-1 Part No.: 141690-1
• 010: MAKITA GASKET FOR JS1602 P/N:442185-0 Part No.: 442185-0
• 011: MAKITA GEAR HOUSING COVER FOR JS1602 P/N:454076-3 Part No.: 454076-3
• 012: MAKITA PIN 6 FOR JS1600 P/N:256110-3 Part No.: 256110-3
• 013: MAKITA SET SCREW M8X16 FOR JS1600 P/N:913427-4 Part No.: 913427-4
• 014: MAKITA PROTECTOR FOR JS1602 P/N:346620-9 Part No.: 346620-9
• 015: MAKITA HEX. SOCKET HEAD BOLT M5X10 FOR JS1600 P/N:922206-9 Part No.: 922206-9
• 016: MAKITA BLADE HOLDER FOR JS1600 Part No.: 321311-3
• 017: MAKITA THIN WASHER 5 FOR JS1600 P/N:253334-2 Part No.: 253334-2
• 021: MAKITA YOKE FOR JS1600 P/N: 311717-3 Part No.: 311717-3
• 022: MAKITA HEX. SOCKET HEAD BOLT M4X16 FOR JN3200 P/N:922127-5 Part No.: 922127-5
• 023: MAKITA HEX. SOCKET HEAD BOLT M6X6 FOR JS1600 P/N:251986-3 Part No.: 251986-3
• 037: MAKITA BALL BEARING 608DDW FOR HR4000C/PV7000C P/N:210005-4 Part No.: 210005-4
• 038: MAKITA FAN 56 FOR 9553NB P/N:240076-7 Part No.: 240076-7
• 039: MAKITA ARMATURE 240V FOR JS1601 P/N:517674-5 Part No.: 517674-5
• 040: MAKITA INSULATION WASHER FOR 4304 P/N:681636-0 Part No.: 681636-0
• 041: MAKITA BALL BEARING 607ZZ FOR MT950 P/N:210062-2 Part No.: 210062-2
• 043: MAKITA BAFFLE PLATE FOR GA4030 Part No.: 450796-7
• 044: MAKITA SPACER FOR JS1000 P/N:452073-3 Part No.: 452073-3
• 045: MAKITA FIELD FOR JS1601 P/N:623549-9 Part No.: 623549-9
• 046: MAKITA TAPPING SCREW 4X70 FOR 9526B P/N:266004-4 Part No.: 266004-4
• 047: MAKITA TAPPING SCREW BIND PT3X8 FOR 2012NB P/N:265954-0 Part No.: 265954-0
• 048: MAKITA BRUSH HOLDER FOR GA4030 P/N:643839-4 Part No.: 643839-4
• 050: MAKITA MOTOR HOUSING FOR GA4030 P/N:450795-9 Part No.: 450795-9
• 051: MAKITA SWITCH KNOB FOR MT953 P/N:418016-5 Part No.: 418016-5
• 052: MAKITA SWITCH LEVER FOR GA4030 P/N:450797-5 Part No.: 450797-5
• 054: MAKITA SPRING 4 FOR DC/AC-GA P/N:233121-5 Part No.: 233121-5
• 055: MAKITA SWITCH DPX-2110-R DOUBLE FOR 9556NB P/N:650621-4 Part No.: 650621-4
• 056: MAKITA CORD CLAMP P/N:687682-1 Part No.: 687682-1
• 057: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 059: MAKITA CORD GUARD 10 FOR HR2020 P/N:682566-8 Part No.: 682566-8
• 060: MAKITA POWER S.CORD BS 1.0-2-2.5 P/N:692527-0 Part No.: 692527-0
