MAKITA HR2630 26MM COMBINATION HAMMER SPARE PARTS

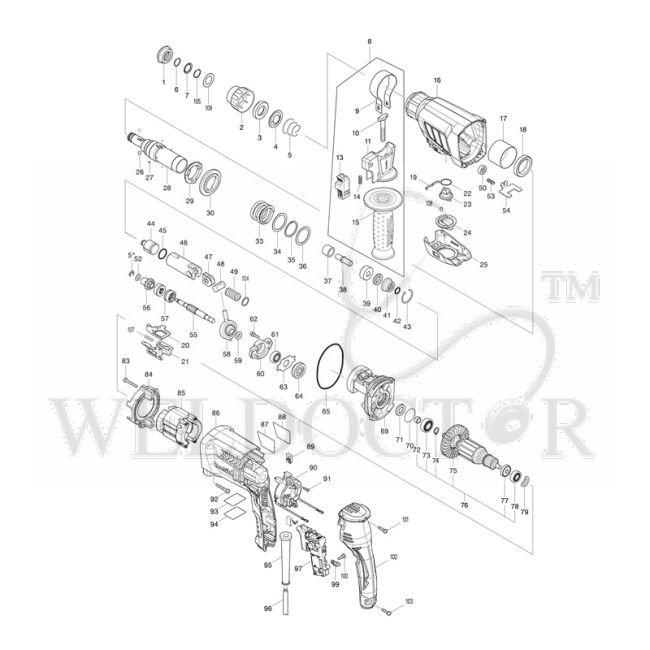

Spare Parts of Makita HR2630 Combination Hammer Ref. No. Part Name & Number Price 001 MAKITA CAP 35 FOR HR2600 P/N:286288-8 Part No.: 286288-8 $0.55 Add To Cart 002 MAKITA CHUCK COVER FOR HR2631 P/N:455393-4 Part No.: 455393-4 $0.65 Add To Cart 003 MAKITA RING 21 FOR HR2610 P/N:325813-1 Part No.: 325813-1 $1.20 Add To Cart 004 MAKITA GUIDE WASHER FOR HR2610 P/N:346177-0 Part No.: 346177-0 $0.44 Add To Cart 005 MAKITA CONICAL COMP.SPRING 21-20 /HR2020 HR2810 P/N:233916-6 Part No.: 233916-6 $0.33 Add To Cart 006 MAKITA RING SPRING FOR HR2610 P/N:233989-9 Part No.: 233989-9 $0.11 Add To Cart 007 MAKITA WASHER 16 FOR HR009G P/N:346834-0 Part No.: 346834-0 $0.55 Add To Cart 008 MAKITA GRIP ASSEMBLY P/N:122878-2 Part No.: 122878-2 $9.81 Add To Cart 009 MAKITA GRIP SPRING 50 FOR HR2610 P/N:346181-9 Part No.: 346181-9 $2.07 Add To Cart 011 MAKITA GRIP BASE FOR HR2610 P/N:451539-0 Part No.: 451539-0 $1.20 Add To Cart 014 MAKITA COMPRESSION SPRING 4 FOR MT953 P/N:233360-7 Part No.: 233360-7 $0.22 Add To Cart 016 MAKITA GEAR HOUSING FOR HR2630/2320T P/N:142971-6 Part No.: 142971-6 $8.94 Add To Cart 017 MAKITA CUP SLEEVE FOR HR2610 P/N:331890-3 Part No.: 331890-3 $3.38 Add To Cart 018 MAKITA BALL BEARING 6806LLU P/N:211294-4 Part No.: 211294-4 $5.45 Add To Cart 019 MAKITA LEAF SPRING FOR HR2631F P/N:232286-0 Part No.: 232286-0 $0.44 Add To Cart 020 MAKITA CHANGE PLATE B FOR HR2631F P/N:346833-2 Part No.: 346833-2 $1.20 Add To Cart 021 MAKITA CHANGE PLATE A FOR HR2631F P/N:346832-4 Part No.: 346832-4 $1.53 Add To Cart 022 MAKITA O RING 17 FOR HR2020 P/N:213278-8 Part No.: 213278-8 $0.33 Add To Cart 023 MAKITA CHANGE LEVER FOR HR2631 P/N:455392-6 Part No.: 455392-6 $0.65 Add To Cart 024 MAKITA CHANGE LEVER CAP FOR HR2631 P/N:455394-2 Part No.: 455394-2 $0.44 Add To Cart 025 MAKITA CHANGE LEVER COVER FOR HR2631 P/N:455391-8 Part No.: 455391-8 $1.64 Add To Cart 026 MAKITA STEEL BALL 7.0 FOR HR3000C HR2810 P/N:216022-2 Part No.: 216022-2 $0.11 Add To Cart 027 MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1 $0.11 Add To Cart 028 MAKITA TOOL HOLDER COMPLETE FOR HR2630 P/N:142973-2 Part No.: 142973-2 $20.93 Add To Cart 029 MAKITA DRIVING FLANGE FOR HR2631F P/N:332139-4 Part No.: 332139-4 $4.36 Add To Cart 030 MAKITA SPUR GEAR 51 FOR HR2613F P/N:227360-7 Part No.: 227360-7 $4.91 Add To Cart 033 MAKITA COMPRESSION SPRING 31 P/N:234148-8 Part No.: 234148-8 $1.20 Add To Cart 034 MAKITA PLAT WASHER 30 P/N:267153-0 Part No.: 267153-0 $0.55 Add To Cart 035 MAKITA SPIRO LOCK WASHER 30 HR2611FT P/N:257932-4 Part No.: 257932-4 $3.05 Add To Cart 036 MAKITA PLAT WASHER 30 P/N:267153-0 Part No.: 267153-0 $0.55 Add To Cart 037 MAKITA SLEEVE 9A FOR HR2610 P/N:325782-6 Part No.: 325782-6 $1.53 Add To Cart 038 MAKITA IMPACT BOLT A FOR HR2610 P/N:325789-2 Part No.: 325789-2 $1.20 Add To Cart 039 MAKITA RING 10A FOR HR2610 P/N:325794-9 Part No.: 325794-9 $0.98 Add To Cart 040 MAKITA CUSHION RING 12 FOR HR2600 P/N:424267-0 Part No.: 424267-0 $0.98 Add To Cart 041 MAKITA O-RING CASEA FOR HR2610 P/N:325798-1 Part No.: 325798-1 $2.07 Add To Cart 042 MAKITA O RING 9 FOR HR2020 HR2810 P/N:213073-6 Part No.: 213073-6 $0.44 Add To Cart 043 MAKITA RING SPRING 28 P/N:233979-2 Part No.: 233979-2 $0.11 Add To Cart 044 MAKITA STRIKER FOR HR2610 P/N:325784-2 Part No.: 325784-2 $2.73 Add To Cart 045 MAKITA O RING 17.5 FOR HR2210 P/N:213258-4 Part No.: 213258-4 $0.98 Add To Cart 046 MAKITA PISTON CYLINDER FOR HR2610 P/N:310345-1 Part No.: 310345-1 $8.39 Add To Cart 047 MAKITA GUIDE PLATE FOR HR261D P/N:346036-8 Part No.: 346036-8 $0.44 Add To Cart 048 MAKITA PISTON JOINT FOR HR2020 P/N:324215-8 Part No.: 324215-8 $0.87 Add To Cart 049 MAKITA COMPRESSION SPRING 14 FOR HR2610 P/N:234098-7 Part No.: 234098-7 $0.33 Add To Cart 050 MAKITA BALL BEARING 606ZZ FOR MT410 P/N:210028-2 Part No.: 210028-2 $1.20 Add To Cart 051 MAKITA STOP RING EXT U-6 FOR BHR242 P/N:257336-0 Part No.: 257336-0 $0.33 Add To Cart 052 MAKITA FLAT WASHER 7 FOR HR160DWA P/N:253186-1 Part No.: 253186-1 $0.22 Add To Cart 053 MAKITA COMPRESSION SPRING 4 FOR MT953 P/N:233360-7 Part No.: 233360-7 $0.22 Add To Cart 054 MAKITA LOCK PLATE FOR HR2631F P/N:346831-6 Part No.: 346831-6 $0.76 Add To Cart 055 MAKITA CAM SHAFT FOR HR2613F P/N:326448-1 Part No.: 326448-1 $5.45 Add To Cart 056 MAKITA SPUR GEAR 10 FOR HR2320T P/N:227359-2 Part No.: 227359-2 $17.44 Add To Cart 057 MAKITA CLUTCH CAM FOR HR2631F P/N:332125-5 Part No.: 332125-5 $3.49 Add To Cart 058 MAKITA SWASH BEARING 10 FOR HR2020 P/N:219014-0 Part No.: 219014-0 $11.66 Add To Cart 059 MAKITA RING 8 MT870 P/N:257321-3 Part No.: 257321-3 $0.44 Add To Cart 060 MAKITA BEARING BOX FOR HR2610 P/N:310344-3 Part No.: 310344-3 $2.07 Add To Cart 061 MAKITA BALL BEARING 608ZZ FOR N1900B P/N:211032-4 Part No.: 211032-4 $1.42 Add To Cart 062 MAKITA HEX.SOCKET HEAD BOLT M4X16 FOR HR2610 P/N:266437-3 Part No.: 266437-3 $0.44 Add To Cart 063 MAKITA BEARING RETAINER FOR HR2610 P/N:285735-6 Part No.: 285735-6 $0.76 Add To Cart 064 MAKITA HELICAL GEAR 26 P/N:227719-8 Part No.: 227719-8 $3.49 Add To Cart 065 MAKITA O-RING 68 FOR HR261D P/N:213728-3 Part No.: 213728-3 $0.98 Add To Cart 069 MAKITA INNER HOUSING CPL FOR HR2610 P/N:141572-7 Part No.: 141572-7 $12.21 Add To Cart 071 MAKITA OIL SEAL 12 HR2610 P/N:213678-2 Part No.: 213678-2 $1.96 Add To Cart 072 MAKITA SLEEVE 9 P/N:262569-4 Part No.: 262569-4 $0.98 Add To Cart 073 MAKITA BALL BEARING 6000LLB P/N:211097-6 Part No.: 211097-6 $3.27 Add To Cart 074 MAKITA RETAINING RING S-10 FOR HR3000C HR2810 P/N:961006-2 Part No.: 961006-2 $0.33 Add To Cart 075 MAKITA FAN 65 P/N:240121-8 Part No.: 240121-8 $0.98 Add To Cart 077 MAKITA INSULATION WASHER FOR 9526B BO4556 P/N:681652-2 Part No.: 681652-2 $0.33 Add To Cart 078 MAKITA BALL BEARING 627DDW FOR GD0800C HR2810 P/N:210023-2 Part No.: 210023-2 $2.07 Add To Cart 079 MAKITA WAVE WASHER 15 FOR HR2470 P/N:267804-5 Part No.: 267804-5 $0.33 Add To Cart 083 MAKITA TAPPING SCREW 4X30 FOR 9556NB P/N:266361-0 Part No.: 266361-0 $0.33 Add To Cart 084 MAKITA BAFFLE PLATE FOR HR2610 P/N:451527-7 Part No.: 451527-7 $1.20 Add To Cart 086 MAKITA MOTOR HOUSING FOR HR2610 P/N:451536-6 Part No.: 451536-6 $9.37 Add To Cart 088 MAKITA CLEAR LABEL FOR HR2300 P/N:819390-8 Part No.: 819390-8 $0.22 Add To Cart 089 MAKITA CARBON BRUSH CB-325 Part No.: 194074-2 $1.90 Add To Cart 090 MAKITA BRUSH HOLDER UNIT FOR HR2610 P/N:638655-7 Part No.: 638655-7 $7.09 Add To Cart 091 MAKITA TAPPING SCREW 3*12 P/N:266556-5 Part No.: 266556-5 $0.22 Add To Cart 092 MAKITA TAPPING SCREW 4X30 FOR 9556NB P/N:266361-0 Part No.: 266361-0 $0.33 Add To Cart 094 MAKITA CLEAR LABEL FOR HR2300 P/N:819389-3 Part No.: 819389-3 $0.33 Add To Cart 097 MAKITA SWITCH TG853TB-1 FOR HR2610 P/N:650626-4 Part No.: 650626-4 $12.86 Add To Cart 100 MAKITA TAPPING SCREW 4X14 FOR GA7020 P/N:266385-6 Part No.: 266385-6 $0.22 Add To Cart 102 MAKITA HANDLE COVER FOR HR2610 P/N:451528-5 Part No.: 451528-5 $4.36 Add To Cart 104 MAKITA FLAT WASHER 14 FOR HR2610 P/N:267447-3 Part No.: 267447-3 $0.33 Add To Cart 105 MAKITA RING SPRING FOR HR2610 P/N:233992-0 Part No.: 233992-0 $0.33 Add To Cart 106 MAKITA FLAT WASHER 17 FOR RP0910 P/N:267114-0 Part No.: 267114-0 $0.87 Add To Cart 107 MAKITA COMPRESSION SPRING 5 FOR HR2631F P/N:234343-0 Part No.: 234343-0 $0.22 Add To Cart 108 MAKITA RUBBER PIN 6 P/N:263005-3 Part No.: 263005-3 $0.22 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA CAP 35 FOR HR2600 P/N:286288-8 Part No.: 286288-8
• 002: MAKITA CHUCK COVER FOR HR2631 P/N:455393-4 Part No.: 455393-4
• 003: MAKITA RING 21 FOR HR2610 P/N:325813-1 Part No.: 325813-1
• 004: MAKITA GUIDE WASHER FOR HR2610 P/N:346177-0 Part No.: 346177-0
• 005: MAKITA CONICAL COMP.SPRING 21-20 /HR2020 HR2810 P/N:233916-6 Part No.: 233916-6
• 006: MAKITA RING SPRING FOR HR2610 P/N:233989-9 Part No.: 233989-9
• 007: MAKITA WASHER 16 FOR HR009G P/N:346834-0 Part No.: 346834-0
• 008: MAKITA GRIP ASSEMBLY P/N:122878-2 Part No.: 122878-2
• 009: MAKITA GRIP SPRING 50 FOR HR2610 P/N:346181-9 Part No.: 346181-9
• 011: MAKITA GRIP BASE FOR HR2610 P/N:451539-0 Part No.: 451539-0
• 014: MAKITA COMPRESSION SPRING 4 FOR MT953 P/N:233360-7 Part No.: 233360-7
• 016: MAKITA GEAR HOUSING FOR HR2630/2320T P/N:142971-6 Part No.: 142971-6
• 017: MAKITA CUP SLEEVE FOR HR2610 P/N:331890-3 Part No.: 331890-3
• 018: MAKITA BALL BEARING 6806LLU P/N:211294-4 Part No.: 211294-4
• 019: MAKITA LEAF SPRING FOR HR2631F P/N:232286-0 Part No.: 232286-0
• 020: MAKITA CHANGE PLATE B FOR HR2631F P/N:346833-2 Part No.: 346833-2
• 021: MAKITA CHANGE PLATE A FOR HR2631F P/N:346832-4 Part No.: 346832-4
• 022: MAKITA O RING 17 FOR HR2020 P/N:213278-8 Part No.: 213278-8
• 023: MAKITA CHANGE LEVER FOR HR2631 P/N:455392-6 Part No.: 455392-6
• 024: MAKITA CHANGE LEVER CAP FOR HR2631 P/N:455394-2 Part No.: 455394-2
• 025: MAKITA CHANGE LEVER COVER FOR HR2631 P/N:455391-8 Part No.: 455391-8
• 026: MAKITA STEEL BALL 7.0 FOR HR3000C HR2810 P/N:216022-2 Part No.: 216022-2
• 027: MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1
• 028: MAKITA TOOL HOLDER COMPLETE FOR HR2630 P/N:142973-2 Part No.: 142973-2
• 029: MAKITA DRIVING FLANGE FOR HR2631F P/N:332139-4 Part No.: 332139-4
• 030: MAKITA SPUR GEAR 51 FOR HR2613F P/N:227360-7 Part No.: 227360-7
• 033: MAKITA COMPRESSION SPRING 31 P/N:234148-8 Part No.: 234148-8
• 034: MAKITA PLAT WASHER 30 P/N:267153-0 Part No.: 267153-0
• 035: MAKITA SPIRO LOCK WASHER 30 HR2611FT P/N:257932-4 Part No.: 257932-4
• 036: MAKITA PLAT WASHER 30 P/N:267153-0 Part No.: 267153-0
• 037: MAKITA SLEEVE 9A FOR HR2610 P/N:325782-6 Part No.: 325782-6
• 038: MAKITA IMPACT BOLT A FOR HR2610 P/N:325789-2 Part No.: 325789-2
• 039: MAKITA RING 10A FOR HR2610 P/N:325794-9 Part No.: 325794-9
• 040: MAKITA CUSHION RING 12 FOR HR2600 P/N:424267-0 Part No.: 424267-0
• 041: MAKITA O-RING CASEA FOR HR2610 P/N:325798-1 Part No.: 325798-1
• 042: MAKITA O RING 9 FOR HR2020 HR2810 P/N:213073-6 Part No.: 213073-6
• 043: MAKITA RING SPRING 28 P/N:233979-2 Part No.: 233979-2
• 044: MAKITA STRIKER FOR HR2610 P/N:325784-2 Part No.: 325784-2
• 045: MAKITA O RING 17.5 FOR HR2210 P/N:213258-4 Part No.: 213258-4
