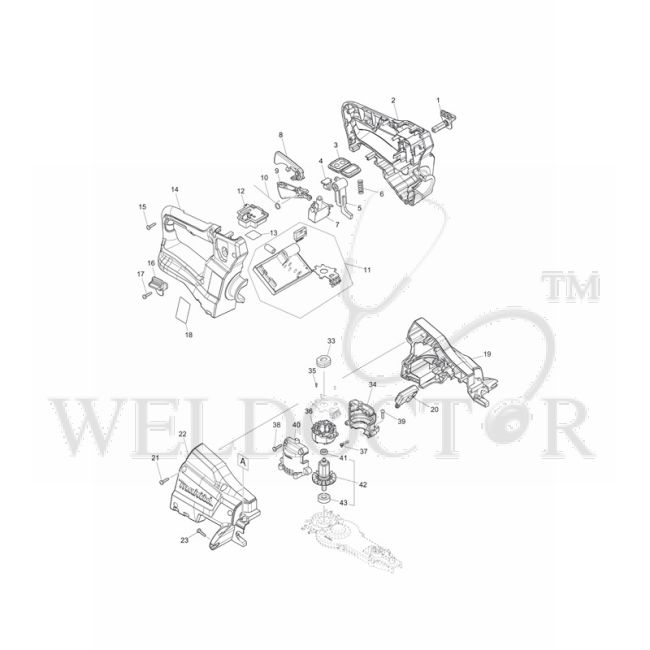

MAKITA DUH502 500MM CORDLESS HEDGE TRIMMER SPARE PARTS

Spare Parts of Makita DUH502 Cordless Hedge Trimmer Ref. No. Part Name & Number Price 002 MAKITA HANDLE SET FOR DUH506 P/N:183V39-1 Part No.: 183V39-1 $15.59 Add To Cart 004 MAKITA TERMINAL FOR DLM330 P/N:644809-6 Part No.: 644809-6 $3.60 Add To Cart 005 MAKITA SWITCH FOR DUH606 P/N:650033-1 Part No.: 650033-1 $17.88 Add To Cart 006 MAKITA SWITCH LEVER RE FOR DUH606 P/N:413J41-1 Part No.: 413J41-1 $0.65 Add To Cart 007 MAKITA TORSION SPRING 6 FOR DUH606 P/N:232770-5 Part No.: 232770-5 $0.11 Add To Cart 008 MAKITA MOTOR HOUSING SET FOR DUH606 P/N:183V95-1 Part No.: 183V95-1 $6.54 Add To Cart 009 MAKITA RUBBER RING 8 P/N:424394-3 Part No.: 424394-3 $0.87 Add To Cart 011 MAKITA HANDLE SET FOR DUH506 P/N:183V39-1 Part No.: 183V39-1 $15.59 Add To Cart 012 MAKITA RUBBER RING 8 P/N:424394-3 Part No.: 424394-3 $0.87 Add To Cart 016 MAKITA MOTOR HOUSING SET FOR DUH606 P/N:183V95-1 Part No.: 183V95-1 $6.54 Add To Cart 018 MAKITA CONTROLLER FOR UH506D P/N:620J54-7 Part No.: 620J54-7 $79.03 Add To Cart 019 MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6 $0.22 Add To Cart 020 MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9 $0.33 Add To Cart 021 MAKITA STATOR FOR DUH606 P/N:629B24-5 Part No.: 629B24-5 $8.94 Add To Cart 022 MAKITA BALL BEARING 695ZZ FOR DUR187 P/N:211157-4 Part No.: 211157-4 $1.42 Add To Cart 023 MAKITA ROTOR ASS'Y FOR DUH606 P/N:519764-0 Part No.: 519764-0 $21.04 Add To Cart 024 MAKITA BALL BEARING 627DDW FOR GD0800C HR2810 P/N:210023-2 Part No.: 210023-2 $2.07 Add To Cart 026 MAKITA FRONT HANDLE COVER E FOR DUH506 P/N:413J39-8 Part No.: 413J39-8 $3.27 Add To Cart 027 MAKITA SWITCH D2VW-01L3-3HS FOR UH506D P/N:650034-9 Part No.: 650034-9 $6.98 Add To Cart 028 MAKITA COMPRESSION SPRING 6 FOR LS0711B P/N:231325-3 Part No.: 231325-3 $0.22 Add To Cart 029 MAKITA SWITCH LEVER FE FOR DUH606 P/N:413J40-3 Part No.: 413J40-3 $3.16 Add To Cart 030 MAKITA FRONT HANDLE E FOR DUH506 P/N:413J38-0 Part No.: 413J38-0 $4.47 Add To Cart 031 MAKITA PAN HEAD SCREW M5X16 FOR LS1040 P/N:911223-4 Part No.: 911223-4 $0.33 Add To Cart 032 MAKITA PROTECTOR COMPLETE FOR DUH606 P/N:141K47-2 Part No.: 141K47-2 $1.96 Add To Cart 034 MAKITA O RING 22 FOR UN001G P/N:213961-7 Part No.: 213961-7 $0.33 Add To Cart 035 MAKITA BEARING HOUSING E FOR DUH606 P/N:312D09-7 Part No.: 312D09-7 $4.91 Add To Cart 036 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 037 MAKITA BALL BEARING 626LLB FOR 6095DWE P/N:211016-2 Part No.: 211016-2 $3.49 Add To Cart 038 MAKITA GEAR COMPLETE FOR DUH606 P/N:141K44-8 Part No.: 141K44-8 $25.40 Add To Cart 039 MAKITA FLAT WASHER 6 FOR 2012NB P/N:253715-0 Part No.: 253715-0 $0.33 Add To Cart 041 MAKITA SPACER FOR DUH606 P/N:313436-7 Part No.: 313436-7 $0.22 Add To Cart 042 MAKITA H.S.H.BOLT M5X25 WITH WR P/N:265A89-3 Part No.: 265A89-3 $0.44 Add To Cart 043 MAKITA PLATE FOR DUH606 P/N:347A10-5 Part No.: 347A10-5 $1.64 Add To Cart 044 MAKITA DUST GUARD FOR DUH606 P/N:422904-0 Part No.: 422904-0 $0.44 Add To Cart 045 MAKITA UNDER COVER FOR DUH606 P/N:413J26-7 Part No.: 413J26-7 $4.36 Add To Cart 048 MAKITA HEX.LOCK NUT M5-8 FOR UH4570 P/N:264013-7 Part No.: 264013-7 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 002: MAKITA HANDLE SET FOR DUH506 P/N:183V39-1 Part No.: 183V39-1
• 004: MAKITA TERMINAL FOR DLM330 P/N:644809-6 Part No.: 644809-6
• 005: MAKITA SWITCH FOR DUH606 P/N:650033-1 Part No.: 650033-1
• 006: MAKITA SWITCH LEVER RE FOR DUH606 P/N:413J41-1 Part No.: 413J41-1
• 007: MAKITA TORSION SPRING 6 FOR DUH606 P/N:232770-5 Part No.: 232770-5
• 008: MAKITA MOTOR HOUSING SET FOR DUH606 P/N:183V95-1 Part No.: 183V95-1
• 009: MAKITA RUBBER RING 8 P/N:424394-3 Part No.: 424394-3
• 011: MAKITA HANDLE SET FOR DUH506 P/N:183V39-1 Part No.: 183V39-1
• 012: MAKITA RUBBER RING 8 P/N:424394-3 Part No.: 424394-3
• 016: MAKITA MOTOR HOUSING SET FOR DUH606 P/N:183V95-1 Part No.: 183V95-1
• 018: MAKITA CONTROLLER FOR UH506D P/N:620J54-7 Part No.: 620J54-7
• 019: MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6
• 020: MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9
• 021: MAKITA STATOR FOR DUH606 P/N:629B24-5 Part No.: 629B24-5
• 022: MAKITA BALL BEARING 695ZZ FOR DUR187 P/N:211157-4 Part No.: 211157-4
• 023: MAKITA ROTOR ASS'Y FOR DUH606 P/N:519764-0 Part No.: 519764-0
• 024: MAKITA BALL BEARING 627DDW FOR GD0800C HR2810 P/N:210023-2 Part No.: 210023-2
• 026: MAKITA FRONT HANDLE COVER E FOR DUH506 P/N:413J39-8 Part No.: 413J39-8
• 027: MAKITA SWITCH D2VW-01L3-3HS FOR UH506D P/N:650034-9 Part No.: 650034-9
• 028: MAKITA COMPRESSION SPRING 6 FOR LS0711B P/N:231325-3 Part No.: 231325-3
• 029: MAKITA SWITCH LEVER FE FOR DUH606 P/N:413J40-3 Part No.: 413J40-3
• 030: MAKITA FRONT HANDLE E FOR DUH506 P/N:413J38-0 Part No.: 413J38-0
• 031: MAKITA PAN HEAD SCREW M5X16 FOR LS1040 P/N:911223-4 Part No.: 911223-4
• 032: MAKITA PROTECTOR COMPLETE FOR DUH606 P/N:141K47-2 Part No.: 141K47-2
• 034: MAKITA O RING 22 FOR UN001G P/N:213961-7 Part No.: 213961-7
• 035: MAKITA BEARING HOUSING E FOR DUH606 P/N:312D09-7 Part No.: 312D09-7
• 036: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 037: MAKITA BALL BEARING 626LLB FOR 6095DWE P/N:211016-2 Part No.: 211016-2
• 038: MAKITA GEAR COMPLETE FOR DUH606 P/N:141K44-8 Part No.: 141K44-8
• 039: MAKITA FLAT WASHER 6 FOR 2012NB P/N:253715-0 Part No.: 253715-0
• 041: MAKITA SPACER FOR DUH606 P/N:313436-7 Part No.: 313436-7
• 042: MAKITA H.S.H.BOLT M5X25 WITH WR P/N:265A89-3 Part No.: 265A89-3
• 043: MAKITA PLATE FOR DUH606 P/N:347A10-5 Part No.: 347A10-5
• 044: MAKITA DUST GUARD FOR DUH606 P/N:422904-0 Part No.: 422904-0
• 045: MAKITA UNDER COVER FOR DUH606 P/N:413J26-7 Part No.: 413J26-7
• 048: MAKITA HEX.LOCK NUT M5-8 FOR UH4570 P/N:264013-7 Part No.: 264013-7
