MAKITA DTW700 CORDLESS IMPACT WRENCH SPARE PARTS

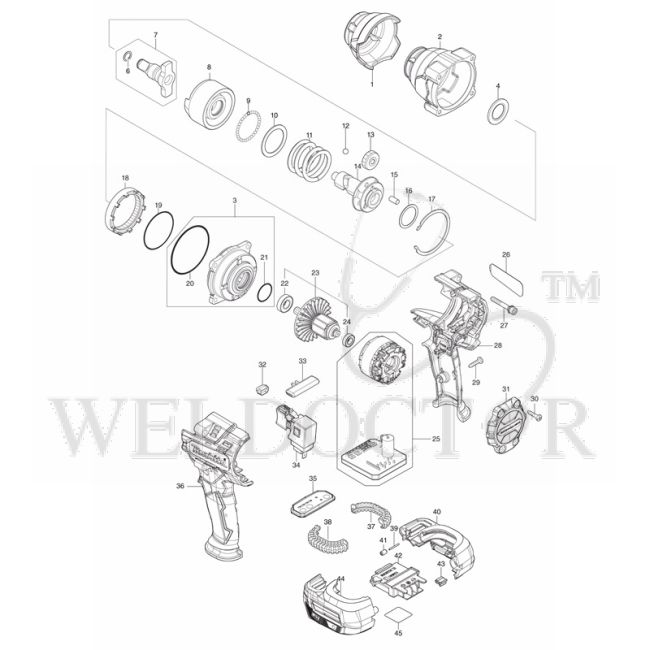

Spare Parts of Makita DTW700 Cordless Impact Wrench Ref. No. Part Name & Number Price 001 MAKITA BUMPER P/N:422607-6 Part No.: 422607-6 $1.42 Add To Cart 002 MAKITA HAMMER CASE COMPLETE P/N:140U47-9 Part No.: 140U47-9 $21.47 Add To Cart 003 MAKITA INTERNAL GEAR CASE ASS'Y P/N:136296-8 Part No.: 136296-8 $12.97 Add To Cart 004 MAKITA FLAT WASHER 20 P/N:253481-9 Part No.: 253481-9 $0.76 Add To Cart 006 MAKITA RING SPRING 10 FOR 6905B P/N:231907-1 Part No.: 231907-1 $0.44 Add To Cart 007 MAKITA ANVIL ASS'Y P/N:136256-0 Part No.: 136256-0 $93.52 Add To Cart 008 MAKITA HAMMER P/N:327624-0 Part No.: 327624-0 $31.61 Add To Cart 009 MAKITA STEEL BALL 3.5 FOR 6409 P/N : 216001-0 Part No.: 216001-0 $0.11 Add To Cart 011 MAKITA COMPRESSION SPRING 34 P/N:232629-6 Part No.: 232629-6 $5.89 Add To Cart 012 MAKITA STEEL BALL 6.4 FOR 6905B P/N:216007-8 Part No.: 216007-8 $0.22 Add To Cart 013 MAKITA SPUR GEAR 21 P/N:227813-6 Part No.: 227813-6 $2.51 Add To Cart 014 MAKITA SPINDLE P/N:327623-2 Part No.: 327623-2 $14.50 Add To Cart 016 MAKITA FLAT WASHER 25 FOR TW1001D P/N:267494-4 Part No.: 267494-4 $0.55 Add To Cart 017 MAKITA RETAINER P/N:347722-4 Part No.: 347722-4 $5.12 Add To Cart 018 MAKITA INTERNAL SPUR GEAR 48 P/N:227814-4 Part No.: 227814-4 $4.58 Add To Cart 019 MAKITA O RING 48 FOR GA5010 P/N:213624-5 Part No.: 213624-5 $0.33 Add To Cart 020 MAKITA O RING 60 FOR HM0810 P/N:213654-6 Part No.: 213654-6 $0.65 Add To Cart 021 MAKITA O RING 22 FOR UN001G P/N:213961-7 Part No.: 213961-7 $0.33 Add To Cart 022 MAKITA BALL BEARING 6900DW P/N:210069-8 Part No.: 210069-8 $3.27 Add To Cart 023 MAKITA ROTOR ASS'Y FOR DTW700 P/N:519635-1 Part No.: 519635-1 $24.85 Add To Cart 025 MAKITA STATOR FOR DTW700 P/N:629A06-1 Part No.: 629A06-1 $139.85 Add To Cart 027 MAKITA H.S.H. BOLT M5X35 WITH WR FOR TW1001D P/N:251476-6 Part No.: 251476-6 $0.76 Add To Cart 028 MAKITA HOUSING SET FOR DTW700 P/N:183P88-2 Part No.: 183P88-2 $14.28 Add To Cart 031 MAKITA REAR COVER P/N:412673-1 Part No.: 412673-1 $2.94 Add To Cart 032 MAKITA LED CIRCUIT FOR DC-DF/HP/PB P/N:620549-0 Part No.: 620549-0 $4.03 Add To Cart 033 MAKITA F/R CHANGE LEVER FOR DC-TW P/N:456268-0 Part No.: 456268-0 $1.09 Add To Cart 034 MAKITA SWITCH COMPLETE FOR TW001G/DTW700 P/N:140U03-9 Part No.: 140U03-9 $28.89 Add To Cart 035 MAKITA SWITCH PLATE FOR DTW700 P/N:140U53-4 Part No.: 140U53-4 $1.85 Add To Cart 036 MAKITA HOUSING SET FOR DTW700 P/N:183P88-2 Part No.: 183P88-2 $14.28 Add To Cart 040 MAKITA BATTERY HOUSING SET FOR DTW700 P/N:183P89-0 Part No.: 183P89-0 $8.50 Add To Cart 041 MAKITA RUBBER PIN 5 P/N:263036-2 Part No.: 263036-2 $0.65 Add To Cart 042 MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2 $3.92 Add To Cart 043 MAKITA CUSHION P/N:424517-3 Part No.: 424517-3 $0.44 Add To Cart 044 MAKITA BATTERY HOUSING SET FOR DTW700 P/N:183P89-0 Part No.: 183P89-0 $8.50 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA BUMPER P/N:422607-6 Part No.: 422607-6
• 002: MAKITA HAMMER CASE COMPLETE P/N:140U47-9 Part No.: 140U47-9
• 003: MAKITA INTERNAL GEAR CASE ASS'Y P/N:136296-8 Part No.: 136296-8
• 004: MAKITA FLAT WASHER 20 P/N:253481-9 Part No.: 253481-9
• 006: MAKITA RING SPRING 10 FOR 6905B P/N:231907-1 Part No.: 231907-1
• 007: MAKITA ANVIL ASS'Y P/N:136256-0 Part No.: 136256-0
• 008: MAKITA HAMMER P/N:327624-0 Part No.: 327624-0
• 009: MAKITA STEEL BALL 3.5 FOR 6409 P/N : 216001-0 Part No.: 216001-0
• 011: MAKITA COMPRESSION SPRING 34 P/N:232629-6 Part No.: 232629-6
• 012: MAKITA STEEL BALL 6.4 FOR 6905B P/N:216007-8 Part No.: 216007-8
• 013: MAKITA SPUR GEAR 21 P/N:227813-6 Part No.: 227813-6
• 014: MAKITA SPINDLE P/N:327623-2 Part No.: 327623-2
• 016: MAKITA FLAT WASHER 25 FOR TW1001D P/N:267494-4 Part No.: 267494-4
• 017: MAKITA RETAINER P/N:347722-4 Part No.: 347722-4
• 018: MAKITA INTERNAL SPUR GEAR 48 P/N:227814-4 Part No.: 227814-4
• 019: MAKITA O RING 48 FOR GA5010 P/N:213624-5 Part No.: 213624-5
• 020: MAKITA O RING 60 FOR HM0810 P/N:213654-6 Part No.: 213654-6
• 021: MAKITA O RING 22 FOR UN001G P/N:213961-7 Part No.: 213961-7
• 022: MAKITA BALL BEARING 6900DW P/N:210069-8 Part No.: 210069-8
• 023: MAKITA ROTOR ASS'Y FOR DTW700 P/N:519635-1 Part No.: 519635-1
• 025: MAKITA STATOR FOR DTW700 P/N:629A06-1 Part No.: 629A06-1
• 027: MAKITA H.S.H. BOLT M5X35 WITH WR FOR TW1001D P/N:251476-6 Part No.: 251476-6
• 028: MAKITA HOUSING SET FOR DTW700 P/N:183P88-2 Part No.: 183P88-2
• 031: MAKITA REAR COVER P/N:412673-1 Part No.: 412673-1
• 032: MAKITA LED CIRCUIT FOR DC-DF/HP/PB P/N:620549-0 Part No.: 620549-0
• 033: MAKITA F/R CHANGE LEVER FOR DC-TW P/N:456268-0 Part No.: 456268-0
• 034: MAKITA SWITCH COMPLETE FOR TW001G/DTW700 P/N:140U03-9 Part No.: 140U03-9
• 035: MAKITA SWITCH PLATE FOR DTW700 P/N:140U53-4 Part No.: 140U53-4
• 036: MAKITA HOUSING SET FOR DTW700 P/N:183P88-2 Part No.: 183P88-2
• 040: MAKITA BATTERY HOUSING SET FOR DTW700 P/N:183P89-0 Part No.: 183P89-0
• 041: MAKITA RUBBER PIN 5 P/N:263036-2 Part No.: 263036-2
• 042: MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2
• 043: MAKITA CUSHION P/N:424517-3 Part No.: 424517-3
• 044: MAKITA BATTERY HOUSING SET FOR DTW700 P/N:183P89-0 Part No.: 183P89-0
