MAKITA DTW1002 CORDLESS IMPACT WRENCH SPARE PARTS

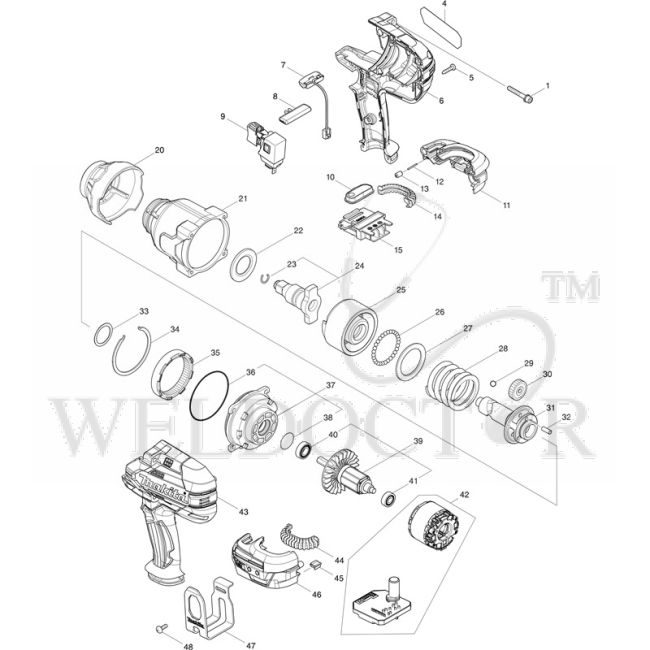

Spare Parts of Makita DTW1002 Cordless Impact Wrench Ref. No. Part Name & Number Price 001 MAKITA H.S.H. BOLT M5X35 WITH WR FOR TW1001D P/N:251476-6 Part No.: 251476-6 $0.76 Add To Cart 007 MAKITA LED CIRCUIT FOR TW1001D P/N:620351-1 Part No.: 620351-1 $13.84 Add To Cart 008 MAKITA F/R CHANGE LEVER FOR DC-TW P/N:456268-0 Part No.: 456268-0 $1.09 Add To Cart 009 MAKITA SWITCH COMPLETE FOR DTW1001 P/N:143416-7 Part No.: 143416-7 $28.89 Add To Cart 010 MAKITA SWITCH PLATE COMPLETE FOR DTW1001 P/N:143417-5 Part No.: 143417-5 $2.94 Add To Cart 011 MAKITA BATTERY HOUSING SET FOR TW1001D P/N:183C12-7 Part No.: 183C12-7 $15.59 Add To Cart 013 MAKITA RUBBER PIN 5 P/N:263036-2 Part No.: 263036-2 $0.65 Add To Cart 015 MAKITA TERMINAL FOR BCV01 P/N:643899-6 Part No.: 643899-6 $3.71 Add To Cart 022 MAKITA WASHER 25 FOR TW1001D P/N:346948-5 Part No.: 346948-5 $1.53 Add To Cart 023 MAKITA RING SPRING 10 FOR 6905B P/N:231907-1 Part No.: 231907-1 $0.44 Add To Cart 025 MAKITA HAMMER FOR DTW1002 P/N:326613-2 Part No.: 326613-2 $54.94 Add To Cart 026 MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8 $0.11 Add To Cart 027 MAKITA FLAT WASHER 38 FOR TW1001D P/N:267493-6 Part No.: 267493-6 $1.20 Add To Cart 028 MAKITA COMPRESSION SPRING 38 FOR DTW1001 P/N:234383-8 Part No.: 234383-8 $11.55 Add To Cart 029 MAKITA STEEL BALL 7.1 FOR HR2410 P/N:216009-4 Part No.: 216009-4 $0.22 Add To Cart 031 MAKITA SPINDLE FOR TW1001D P/N:326611-6 Part No.: 326611-6 $97.99 Add To Cart 032 MAKITA PIN 5 FOR TW1001D P/N:268079-9 Part No.: 268079-9 $0.76 Add To Cart 033 MAKITA FLAT WASHER 25 FOR TW1001D P/N:267494-4 Part No.: 267494-4 $0.55 Add To Cart 034 MAKITA RETAINER FOR DC-TW P/N:346947-7 Part No.: 346947-7 $7.30 Add To Cart 035 MAKITA INTERNAL SPUR GEAR 54 FOR TW1001D P/N:227392-4 Part No.: 227392-4 $15.91 Add To Cart 036 MAKITA O RING 67 FOR HR2410 P/N:213720-9 Part No.: 213720-9 $0.55 Add To Cart 037 MAKITA INTERNAL GEAR CASE ASS'Y FOR TW1001D P/N:135718-5 Part No.: 135718-5 $28.12 Add To Cart 038 MAKITA O RING 22 FOR UN001G P/N:213961-7 Part No.: 213961-7 $0.33 Add To Cart 040 MAKITA BALL BEARING 6900DW P/N:210069-8 Part No.: 210069-8 $3.27 Add To Cart 041 MAKITA BALL BEARING 607ZZ FOR HR160DWA P/N:211022-7 Part No.: 211022-7 $4.25 Add To Cart 045 MAKITA CUSHION P/N:424517-3 Part No.: 424517-3 $0.44 Add To Cart 046 MAKITA BATTERY HOUSING SET FOR TW1001D P/N:183C12-7 Part No.: 183C12-7 $15.59 Add To Cart 048 MAKITA SCREW M4X12 P/N:251314-2 Part No.: 251314-2 $0.22 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA H.S.H. BOLT M5X35 WITH WR FOR TW1001D P/N:251476-6 Part No.: 251476-6
• 007: MAKITA LED CIRCUIT FOR TW1001D P/N:620351-1 Part No.: 620351-1
• 008: MAKITA F/R CHANGE LEVER FOR DC-TW P/N:456268-0 Part No.: 456268-0
• 009: MAKITA SWITCH COMPLETE FOR DTW1001 P/N:143416-7 Part No.: 143416-7
• 010: MAKITA SWITCH PLATE COMPLETE FOR DTW1001 P/N:143417-5 Part No.: 143417-5
• 011: MAKITA BATTERY HOUSING SET FOR TW1001D P/N:183C12-7 Part No.: 183C12-7
• 013: MAKITA RUBBER PIN 5 P/N:263036-2 Part No.: 263036-2
• 015: MAKITA TERMINAL FOR BCV01 P/N:643899-6 Part No.: 643899-6
• 022: MAKITA WASHER 25 FOR TW1001D P/N:346948-5 Part No.: 346948-5
• 023: MAKITA RING SPRING 10 FOR 6905B P/N:231907-1 Part No.: 231907-1
• 025: MAKITA HAMMER FOR DTW1002 P/N:326613-2 Part No.: 326613-2
• 026: MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8
• 027: MAKITA FLAT WASHER 38 FOR TW1001D P/N:267493-6 Part No.: 267493-6
• 028: MAKITA COMPRESSION SPRING 38 FOR DTW1001 P/N:234383-8 Part No.: 234383-8
• 029: MAKITA STEEL BALL 7.1 FOR HR2410 P/N:216009-4 Part No.: 216009-4
• 031: MAKITA SPINDLE FOR TW1001D P/N:326611-6 Part No.: 326611-6
• 032: MAKITA PIN 5 FOR TW1001D P/N:268079-9 Part No.: 268079-9
• 033: MAKITA FLAT WASHER 25 FOR TW1001D P/N:267494-4 Part No.: 267494-4
• 034: MAKITA RETAINER FOR DC-TW P/N:346947-7 Part No.: 346947-7
• 035: MAKITA INTERNAL SPUR GEAR 54 FOR TW1001D P/N:227392-4 Part No.: 227392-4
• 036: MAKITA O RING 67 FOR HR2410 P/N:213720-9 Part No.: 213720-9
• 037: MAKITA INTERNAL GEAR CASE ASS'Y FOR TW1001D P/N:135718-5 Part No.: 135718-5
• 038: MAKITA O RING 22 FOR UN001G P/N:213961-7 Part No.: 213961-7
• 040: MAKITA BALL BEARING 6900DW P/N:210069-8 Part No.: 210069-8
• 041: MAKITA BALL BEARING 607ZZ FOR HR160DWA P/N:211022-7 Part No.: 211022-7
• 045: MAKITA CUSHION P/N:424517-3 Part No.: 424517-3
• 046: MAKITA BATTERY HOUSING SET FOR TW1001D P/N:183C12-7 Part No.: 183C12-7
• 048: MAKITA SCREW M4X12 P/N:251314-2 Part No.: 251314-2
