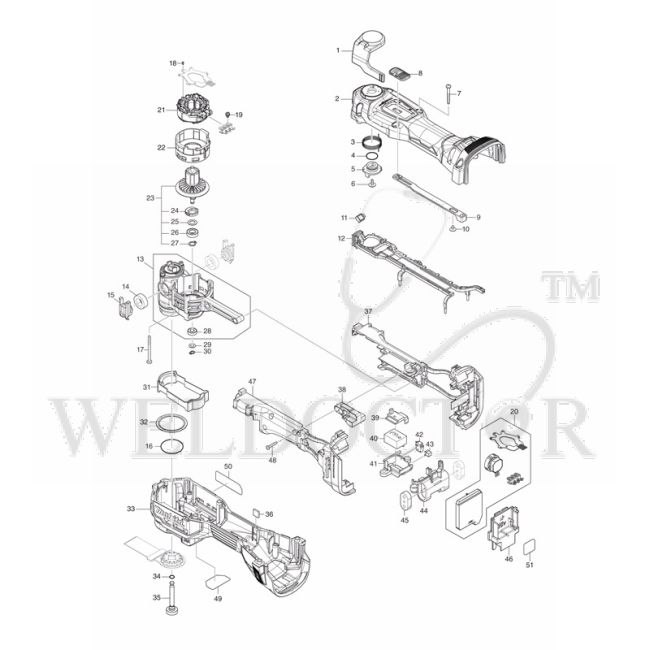

MAKITA DTM52 CORDLESS MULTI TOOL SPARE PARTS

Spare Parts of Makita DTM52 Cordless Multi Tool Ref. No. Part Name & Number Price 001 MAKITA LEVER COMPLETE FOR DTM52 P/N:140Y95-2 Part No.: 140Y95-2 $6.32 Add To Cart 002 MAKITA HOUSING SET FOR DTM52 P/N:183S78-3 Part No.: 183S78-3 $12.43 Add To Cart 003 MAKITA TORSION SPRING 25 FOR DTM52 P/N:232680-6 Part No.: 232680-6 $0.33 Add To Cart 004 MAKITA O RING 10 FOR HR3000C P/N:213070-2 Part No.: 213070-2 $0.33 Add To Cart 005 MAKITA DRIVER B FOR DTM52 P/N:313364-6 Part No.: 313364-6 $2.40 Add To Cart 006 MAKITA PAN HEAD SCREW M3*10 WITH WR FOR DTM52 P/N:265B82-3 Part No.: 265B82-3 $0.22 Add To Cart 007 MAKITA PAN HEAD SCREW M4X35 P/N:266351-3 Part No.: 266351-3 $0.33 Add To Cart 009 MAKITA SWITCH LEVER A FOR DTM52 P/N:413396-4 Part No.: 413396-4 $0.55 Add To Cart 010 MAKITA TAPPING SCREW FLANGE 3*6 FOR DTM52 P/N:265B81-5 Part No.: 265B81-5 $0.22 Add To Cart 011 MAKITA LED CIRCUIT FOR DTM52 P/N:620E79-1 Part No.: 620E79-1 $5.45 Add To Cart 012 MAKITA LED GUIDE FOR DTM52 P/N:413400-9 Part No.: 413400-9 $1.96 Add To Cart 014 MAKITA CUSHION F FOR DTM52 P/N:422677-5 Part No.: 422677-5 $0.44 Add To Cart 015 MAKITA CUSSION SUPPORT F FOR DTM52 P/N:413401-7 Part No.: 413401-7 $0.55 Add To Cart 018 MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9 $0.33 Add To Cart 019 MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6 $0.22 Add To Cart 020 MAKITA CONTROLLER FOR DTM52 P/N:620E78-3 Part No.: 620E78-3 $85.46 Add To Cart 021 MAKITA STATOR FOR DTM52 P/N:629A56-6 Part No.: 629A56-6 $8.28 Add To Cart 022 MAKITA MOTOR HOUSING FOR DTM52 P/N:413394-8 Part No.: 413394-8 $0.98 Add To Cart 023 MAKITA ROTOR ASSY FOR DTM52 P/N:519683-0 Part No.: 519683-0 $21.80 Add To Cart 025 MAKITA FLAT WASHER 8 FOR HP2040 P/N:253777-8 Part No.: 253777-8 $0.33 Add To Cart 027 MAKITA RETAINING RING S-8 P/N:961004-6 Part No.: 961004-6 $0.11 Add To Cart 029 MAKITA FLAT WASHER 5 FOR 5016B Part No.: 253811-4 $0.33 Add To Cart 030 MAKITA RETAINING RING S-5 FOR PK5001C P/N:961008-8 Part No.: 961008-8 $0.22 Add To Cart 031 MAKITA CAP FOR DTM52 P/N:422721-8 Part No.: 422721-8 $0.76 Add To Cart 032 MAKITA RUBBER RING 35 FOR DTM52 P/N:422682-2 Part No.: 422682-2 $0.33 Add To Cart 033 MAKITA HOUSING SET FOR DTM52 P/N:183S78-3 Part No.: 183S78-3 $12.43 Add To Cart 034 MAKITA O RING 4 P/N:213032-0 Part No.: 213032-0 $0.22 Add To Cart 035 MAKITA HOLDER BOLT FOR DTM52 P/N:327769-4 Part No.: 327769-4 $4.03 Add To Cart 036 MAKITA CUSHION M FOR DTM52 P/N:422679-1 Part No.: 422679-1 $0.33 Add To Cart 037 MAKITA INNER HOUSING SET FOR DTM52 P/N:183S69-4 Part No.: 183S69-4 $11.66 Add To Cart 038 MAKITA WEIGHT FOR DTM52 P/N:313365-4 Part No.: 313365-4 $2.62 Add To Cart 039 MAKITA SWITCH LEVER B FOR DTM52 P/N:413397-2 Part No.: 413397-2 $0.44 Add To Cart 040 MAKITA SWITCH BSW-1125A FOR DTM52 P/N:650000-6 Part No.: 650000-6 $3.71 Add To Cart 042 MAKITA SWITCH UNIT FOR DTM52 P/N:632S34-5 Part No.: 632S34-5 $8.50 Add To Cart 043 MAKITA LEAF SPRING FOR DTM52 P/N:232706-4 Part No.: 232706-4 $0.33 Add To Cart 044 MAKITA SWITCH COVER FOR DTM52 P/N:413399-8 Part No.: 413399-8 $0.98 Add To Cart 045 MAKITA CUSHION R FOR DTM52 P/N:422678-3 Part No.: 422678-3 $0.44 Add To Cart 046 MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2 $3.92 Add To Cart 047 MAKITA INNER HOUSING SET FOR DTM52 P/N:183S69-4 Part No.: 183S69-4 $11.66 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA LEVER COMPLETE FOR DTM52 P/N:140Y95-2 Part No.: 140Y95-2
• 002: MAKITA HOUSING SET FOR DTM52 P/N:183S78-3 Part No.: 183S78-3
• 003: MAKITA TORSION SPRING 25 FOR DTM52 P/N:232680-6 Part No.: 232680-6
• 004: MAKITA O RING 10 FOR HR3000C P/N:213070-2 Part No.: 213070-2
• 005: MAKITA DRIVER B FOR DTM52 P/N:313364-6 Part No.: 313364-6
• 006: MAKITA PAN HEAD SCREW M3*10 WITH WR FOR DTM52 P/N:265B82-3 Part No.: 265B82-3
• 007: MAKITA PAN HEAD SCREW M4X35 P/N:266351-3 Part No.: 266351-3
• 009: MAKITA SWITCH LEVER A FOR DTM52 P/N:413396-4 Part No.: 413396-4
• 010: MAKITA TAPPING SCREW FLANGE 3*6 FOR DTM52 P/N:265B81-5 Part No.: 265B81-5
• 011: MAKITA LED CIRCUIT FOR DTM52 P/N:620E79-1 Part No.: 620E79-1
• 012: MAKITA LED GUIDE FOR DTM52 P/N:413400-9 Part No.: 413400-9
• 014: MAKITA CUSHION F FOR DTM52 P/N:422677-5 Part No.: 422677-5
• 015: MAKITA CUSSION SUPPORT F FOR DTM52 P/N:413401-7 Part No.: 413401-7
• 018: MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9
• 019: MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6
• 020: MAKITA CONTROLLER FOR DTM52 P/N:620E78-3 Part No.: 620E78-3
• 021: MAKITA STATOR FOR DTM52 P/N:629A56-6 Part No.: 629A56-6
• 022: MAKITA MOTOR HOUSING FOR DTM52 P/N:413394-8 Part No.: 413394-8
• 023: MAKITA ROTOR ASSY FOR DTM52 P/N:519683-0 Part No.: 519683-0
• 025: MAKITA FLAT WASHER 8 FOR HP2040 P/N:253777-8 Part No.: 253777-8
• 027: MAKITA RETAINING RING S-8 P/N:961004-6 Part No.: 961004-6
• 029: MAKITA FLAT WASHER 5 FOR 5016B Part No.: 253811-4
• 030: MAKITA RETAINING RING S-5 FOR PK5001C P/N:961008-8 Part No.: 961008-8
• 031: MAKITA CAP FOR DTM52 P/N:422721-8 Part No.: 422721-8
• 032: MAKITA RUBBER RING 35 FOR DTM52 P/N:422682-2 Part No.: 422682-2
• 033: MAKITA HOUSING SET FOR DTM52 P/N:183S78-3 Part No.: 183S78-3
• 034: MAKITA O RING 4 P/N:213032-0 Part No.: 213032-0
• 035: MAKITA HOLDER BOLT FOR DTM52 P/N:327769-4 Part No.: 327769-4
• 036: MAKITA CUSHION M FOR DTM52 P/N:422679-1 Part No.: 422679-1
• 037: MAKITA INNER HOUSING SET FOR DTM52 P/N:183S69-4 Part No.: 183S69-4
• 038: MAKITA WEIGHT FOR DTM52 P/N:313365-4 Part No.: 313365-4
• 039: MAKITA SWITCH LEVER B FOR DTM52 P/N:413397-2 Part No.: 413397-2
• 040: MAKITA SWITCH BSW-1125A FOR DTM52 P/N:650000-6 Part No.: 650000-6
• 042: MAKITA SWITCH UNIT FOR DTM52 P/N:632S34-5 Part No.: 632S34-5
• 043: MAKITA LEAF SPRING FOR DTM52 P/N:232706-4 Part No.: 232706-4
• 044: MAKITA SWITCH COVER FOR DTM52 P/N:413399-8 Part No.: 413399-8
• 045: MAKITA CUSHION R FOR DTM52 P/N:422678-3 Part No.: 422678-3
• 046: MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2
• 047: MAKITA INNER HOUSING SET FOR DTM52 P/N:183S69-4 Part No.: 183S69-4
