MAKITA DTL063 CORDLESS ANGLE IMPACT WRENCH SPARE PARTS

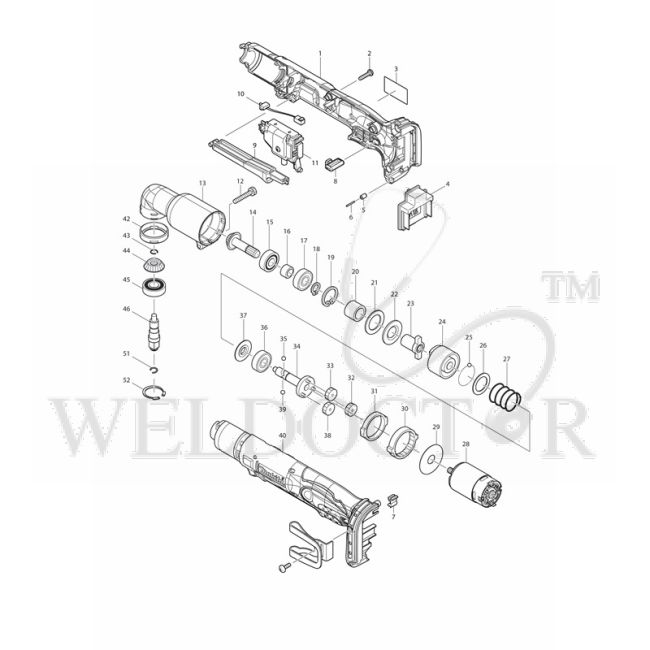

Spare Parts of Makita DTL063 Cordless Angle Impact Wrench Ref. No. Part Name & Number Price 001 MAKITA HOUSING SET FOR DTL063 P/N:188397-8 Part No.: 188397-8 $29.87 Add To Cart 002 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 004 MAKITA TERMINAL FOR BDF456 P/N:643852-2 Part No.: 643852-2 $3.05 Add To Cart 005 MAKITA RUBBER PIN 5 P/N:263036-2 Part No.: 263036-2 $0.65 Add To Cart 006 MAKITA PIN 1.5 FOR BHR241 P/N:268184-2 Part No.: 268184-2 $0.22 Add To Cart 007 MAKITA CUSHION FOR BHR241 P/N:424026-2 Part No.: 424026-2 $1.85 Add To Cart 011 MAKITA SWITCH UNIT FOR BTL061 P/N:638885-0 Part No.: 638885-0 $47.85 Add To Cart 013 MAKITA ANGLE HEAD COMPLETE FOR 6940D P/N:152461-1 Part No.: 152461-1 $43.71 Add To Cart 014 MAKITA ZEROL BEVEL GEAR 13 FOR 6940D P/N:226720-0 Part No.: 226720-0 $25.72 Add To Cart 015 MAKITA BALL BEARING 6000 FOR 2414NB P/N:211064-1 Part No.: 211064-1 $3.60 Add To Cart 016 MAKITA SLEEVE 10 FOR 6942D P/N:257660-1 Part No.: 257660-1 $2.18 Add To Cart 017 MAKITA BALL BEARING 6000LLB P/N:211061-7 Part No.: 211061-7 $3.05 Add To Cart 018 MAKITA RETAINING RING S-10 FOR HR3000C HR2810 P/N:961006-2 Part No.: 961006-2 $0.33 Add To Cart 019 MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3 $0.55 Add To Cart 025 MAKITA STEEL BALL 3.5 FOR 6409 P/N : 216001-0 Part No.: 216001-0 $0.11 Add To Cart 026 MAKITA FLAT WASHER 20 FOR HR4000C P/N:267121-3 Part No.: 267121-3 $0.55 Add To Cart 027 MAKITA COMPRESSION SPRING 22 FOR 6942D P/N:233107-9 Part No.: 233107-9 $1.42 Add To Cart 028 MAKITA DC MOTOR FOR DTL061/063 P/N:629846-1 Part No.: 629846-1 $30.96 Add To Cart 030 MAKITA INTERNAL GEAR 69 FOR 6942DZ P/N:226280-2 Part No.: 226280-2 $2.18 Add To Cart 032 MAKITA SPUR GEAR 29 FOR 6942D P/N:226279-7 Part No.: 226279-7 $0.65 Add To Cart 033 MAKITA SPUR GEAR 29 FOR 6942D P/N:226279-7 Part No.: 226279-7 $0.65 Add To Cart 035 MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8 $0.11 Add To Cart 036 MAKITA BALL BEARING 6000 FOR 2414NB P/N:211064-1 Part No.: 211064-1 $3.60 Add To Cart 038 MAKITA SPUR GEAR 29 FOR 6942D P/N:226279-7 Part No.: 226279-7 $0.65 Add To Cart 039 MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8 $0.11 Add To Cart 040 MAKITA HOUSING SET FOR DTL063 P/N:188397-8 Part No.: 188397-8 $29.87 Add To Cart 042 MAKITA RUBBER RING 32 FOR BTL061 P/N:424044-0 Part No.: 424044-0 $1.74 Add To Cart 043 MAKITA RING SPRING 9 FOR 6940D P/N:231990-8 Part No.: 231990-8 $0.22 Add To Cart 044 MAKITA ZEROL BEVEL GEAR 13 FOR 6942D P/N:226721-8 Part No.: 226721-8 $16.57 Add To Cart 045 MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2 $3.27 Add To Cart 046 MAKITA SPINDLE FOR 6942D P/N:324026-1 Part No.: 324026-1 $25.07 Add To Cart 051 MAKITA RING SPRING 7 FOR 6942D P/N:231964-9 Part No.: 231964-9 $0.22 Add To Cart 052 MAKITA RETAINING RING R-28 FOR 6940D P/N:962116-8 Part No.: 962116-8 $0.76 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA HOUSING SET FOR DTL063 P/N:188397-8 Part No.: 188397-8
• 002: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 004: MAKITA TERMINAL FOR BDF456 P/N:643852-2 Part No.: 643852-2
• 005: MAKITA RUBBER PIN 5 P/N:263036-2 Part No.: 263036-2
• 006: MAKITA PIN 1.5 FOR BHR241 P/N:268184-2 Part No.: 268184-2
• 007: MAKITA CUSHION FOR BHR241 P/N:424026-2 Part No.: 424026-2
• 011: MAKITA SWITCH UNIT FOR BTL061 P/N:638885-0 Part No.: 638885-0
• 013: MAKITA ANGLE HEAD COMPLETE FOR 6940D P/N:152461-1 Part No.: 152461-1
• 014: MAKITA ZEROL BEVEL GEAR 13 FOR 6940D P/N:226720-0 Part No.: 226720-0
• 015: MAKITA BALL BEARING 6000 FOR 2414NB P/N:211064-1 Part No.: 211064-1
• 016: MAKITA SLEEVE 10 FOR 6942D P/N:257660-1 Part No.: 257660-1
• 017: MAKITA BALL BEARING 6000LLB P/N:211061-7 Part No.: 211061-7
• 018: MAKITA RETAINING RING S-10 FOR HR3000C HR2810 P/N:961006-2 Part No.: 961006-2
• 019: MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3
• 025: MAKITA STEEL BALL 3.5 FOR 6409 P/N : 216001-0 Part No.: 216001-0
• 026: MAKITA FLAT WASHER 20 FOR HR4000C P/N:267121-3 Part No.: 267121-3
• 027: MAKITA COMPRESSION SPRING 22 FOR 6942D P/N:233107-9 Part No.: 233107-9
• 028: MAKITA DC MOTOR FOR DTL061/063 P/N:629846-1 Part No.: 629846-1
• 030: MAKITA INTERNAL GEAR 69 FOR 6942DZ P/N:226280-2 Part No.: 226280-2
• 032: MAKITA SPUR GEAR 29 FOR 6942D P/N:226279-7 Part No.: 226279-7
• 033: MAKITA SPUR GEAR 29 FOR 6942D P/N:226279-7 Part No.: 226279-7
• 035: MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8
• 036: MAKITA BALL BEARING 6000 FOR 2414NB P/N:211064-1 Part No.: 211064-1
• 038: MAKITA SPUR GEAR 29 FOR 6942D P/N:226279-7 Part No.: 226279-7
• 039: MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8
• 040: MAKITA HOUSING SET FOR DTL063 P/N:188397-8 Part No.: 188397-8
• 042: MAKITA RUBBER RING 32 FOR BTL061 P/N:424044-0 Part No.: 424044-0
• 043: MAKITA RING SPRING 9 FOR 6940D P/N:231990-8 Part No.: 231990-8
• 044: MAKITA ZEROL BEVEL GEAR 13 FOR 6942D P/N:226721-8 Part No.: 226721-8
• 045: MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2
• 046: MAKITA SPINDLE FOR 6942D P/N:324026-1 Part No.: 324026-1
• 051: MAKITA RING SPRING 7 FOR 6942D P/N:231964-9 Part No.: 231964-9
• 052: MAKITA RETAINING RING R-28 FOR 6940D P/N:962116-8 Part No.: 962116-8
