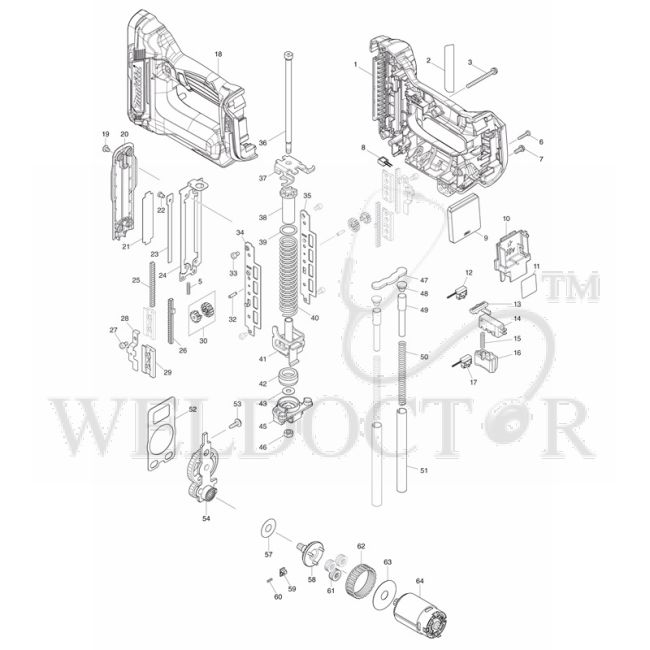

MAKITA DST421 CORDLESS STAPLER SPARE PARTS

Spare Parts of Makita DST421 Cordless Stapler Ref. No. Part Name & Number Price 003 MAKITA PAN HEAD SCREW M4X45 FOR 6906 P/N:911173-3 Part No.: 911173-3 $0.44 Add To Cart 005 MAKITA COMPRESSION SPRING 4 P/N:232608-4 Part No.: 232608-4 $0.44 Add To Cart 006 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 007 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 009 MAKITA CONTROLLER FOR DST121/421 P/N:632P85-0 Part No.: 632P85-0 $62.02 Add To Cart 010 MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2 $3.92 Add To Cart 012 MAKITA SWITCH UNIT FOR DPT353 P/N:632G60-2 Part No.: 632G60-2 $8.07 Add To Cart 014 MAKITA SWITCH FOR DFT/DFN/DVC/VC006GM P/N:651910-0 Part No.: 651910-0 $6.98 Add To Cart 015 MAKITA COMPRESSION SPRING 5 FOR PT352D P/N:232370-1 Part No.: 232370-1 $0.44 Add To Cart 016 MAKITA TRIGGER FOR DPT353 P/N:457386-7 Part No.: 457386-7 $1.85 Add To Cart 017 MAKITA SWITCH UNIT FOR DFN350/DPT353/DST121 P/N:632K06-2 Part No.: 632K06-2 $12.54 Add To Cart 019 MAKITA BINDING HEAD SCREW M4X6 FOR PT352D P/N:915101-0 Part No.: 915101-0 $0.11 Add To Cart 020 MAKITA FRONT COVER P/N:412495-9 Part No.: 412495-9 $3.82 Add To Cart 021 MAKITA UPPER PLATE P/N:347528-0 Part No.: 347528-0 $1.42 Add To Cart 022 MAKITA FLAT FILLISTER HD. PIN 4 P/N:256882-0 Part No.: 256882-0 $2.83 Add To Cart 023 MAKITA DRIVER P/N:347684-6 Part No.: 347684-6 $12.32 Add To Cart 024 MAKITA RAIL P/N:347683-8 Part No.: 347683-8 $16.02 Add To Cart 026 MAKITA COUNTER WEIGHT B P/N:310925-3 Part No.: 310925-3 $11.45 Add To Cart 027 MAKITA H.S.H BOLT M4X6 WITH W FOR DPT353 P/N:251566-5 Part No.: 251566-5 $0.65 Add To Cart 028 MAKITA PINION GUIDE FOR PT352D P/N:347146-4 Part No.: 347146-4 $3.05 Add To Cart 030 MAKITA SPUR GEAR ASSEMBLY P/N:136104-3 Part No.: 136104-3 $8.94 Add To Cart 032 MAKITA PINION SHAFT FOR PT352D P/N:326902-5 Part No.: 326902-5 $0.44 Add To Cart 033 MAKITA H.S.H BOLT M4X6 FOR ST001G P/N:266199-3 Part No.: 266199-3 $0.44 Add To Cart 034 MAKITA GUIDE RAIL R FOR PT352D P/N:347145-6 Part No.: 347145-6 $8.94 Add To Cart 035 MAKITA GUIDE RAIL L FOR PT352D P/N:347144-8 Part No.: 347144-8 $8.94 Add To Cart 036 MAKITA GUIDE BOLT FOR DST/DFN/DPT P/N:326903-3 Part No.: 326903-3 $2.07 Add To Cart 037 MAKITA BOTTOM PLATE FOR DFN350 P/N:347728-2 Part No.: 347728-2 $9.48 Add To Cart 038 MAKITA SPRING HOLDER P/N:459311-4 Part No.: 459311-4 $2.18 Add To Cart 039 MAKITA SPRING BASE P/N:347522-2 Part No.: 347522-2 $0.87 Add To Cart 040 MAKITA COMPRESSION SPRING 17 P/N:232511-9 Part No.: 232511-9 $24.42 Add To Cart 041 MAKITA HAMMER FOR DFN/DST P/N:347735-5 Part No.: 347735-5 $54.94 Add To Cart 042 MAKITA CUSHION P/N:422457-9 Part No.: 422457-9 $1.53 Add To Cart 043 MAKITA FLAT WASHER 6 FOR 6095DWE P/N:253804-1 Part No.: 253804-1 $0.33 Add To Cart 045 MAKITA HOLDER P/N:319984-4 Part No.: 319984-4 $18.53 Add To Cart 046 MAKITA HEX. NUT M6 P/N:252273-3 Part No.: 252273-3 $0.98 Add To Cart 047 MAKITA COUNTER STOPPER P/N:347729-0 Part No.: 347729-0 $3.38 Add To Cart 048 MAKITA COUNTER CUSHION P/N:422592-3 Part No.: 422592-3 $1.85 Add To Cart 050 MAKITA COMPRESSION SPRING 7 P/N:232630-1 Part No.: 232630-1 $0.87 Add To Cart 051 MAKITA GUIDE PIPE P/N:327592-7 Part No.: 327592-7 $10.36 Add To Cart 052 MAKITA GEAR PLATE P/N:347525-6 Part No.: 347525-6 $3.92 Add To Cart 054 MAKITA SPUR GEAR 61 COMPLETE P/N:140K45-3 Part No.: 140K45-3 $50.47 Add To Cart 058 MAKITA SPUR GEAR 8 COMPLETE FOR FN350D P/N:140K48-7 Part No.: 140K48-7 $9.48 Add To Cart 059 MAKITA LOCK BLOCK P/N:310945-7 Part No.: 310945-7 $6.00 Add To Cart 060 MAKITA COMPRESSION SPRING 3 P/N:232513-5 Part No.: 232513-5 $0.65 Add To Cart 061 MAKITA SPUR GEAR 27 FOR DPT353 P/N:221961-3 Part No.: 221961-3 $1.42 Add To Cart 062 MAKITA INTERNAL GEAR 69 FOR BPT351 P/N:227166-3 Part No.: 227166-3 $2.94 Add To Cart 064 MAKITA DC MOTOR FOR DFN350/DST121/DST421 P/N:629408-5 Part No.: 629408-5 $18.97 Add To Cart 065 MAKITA HEX. SOCKET HEAD BOLT M4X16 FOR JN3200 P/N:922127-5 Part No.: 922127-5 $0.33 Add To Cart 069 MAKITA CONTACT ARM GUDE FOR DST/ST P/N:347685-4 Part No.: 347685-4 $3.82 Add To Cart 071 MAKITA COMPRESSION SPRING FOR DST/ST P/N:232607-6 Part No.: 232607-6 $0.44 Add To Cart 074 MAKITA CONTACT ARM COVER P/N:412496-7 Part No.: 412496-7 $2.83 Add To Cart 075 MAKITA SWITCH UNIT FOR DST121/421 P/N:632P86-8 Part No.: 632P86-8 $13.84 Add To Cart 076 MAKITA UNDER DRIVER GUIDE P/N:347678-1 Part No.: 347678-1 $4.58 Add To Cart 078 MAKITA LOCK LEVER P/N:347679-9 Part No.: 347679-9 $13.41 Add To Cart 081 MAKITA TORSION SPRING 8 P/N:232606-8 Part No.: 232606-8 $0.65 Add To Cart 082 MAKITA STOP RING E-3 FOR 4304 P/N:961017-7 Part No.: 961017-7 $0.11 Add To Cart 083 MAKITA SUPPORTER P/N:347681-2 Part No.: 347681-2 $5.12 Add To Cart 084 MAKITA TAPPING SCREW 4X14 FOR 2012NB P/N:266192-7 Part No.: 266192-7 $0.33 Add To Cart 086 MAKITA HEX.SOCKET HEAD BOLT M4X14 P/N:265A52-6 Part No.: 265A52-6 $1.42 Add To Cart 089 MAKITA H.S.SET SCREW(DOG POINT)M10X12 P/N:266197-7 Part No.: 266197-7 $1.31 Add To Cart 090 MAKITA MAGAZINE END FOR DST121 P/N:421637-4 Part No.: 421637-4 $2.51 Add To Cart 091 MAKITA ADJUSTER P/N:412771-1 Part No.: 412771-1 $1.85 Add To Cart 092 MAKITA DEPTH GUIDE P/N:454627-2 Part No.: 454627-2 $3.16 Add To Cart 093 MAKITA H.S.BUTTON HEAD SCREW M5X8 P/N:266868-6 Part No.: 266868-6 $0.87 Add To Cart 094 MAKITA TAPPING SCREW BIND PT3X10 FOR BTW201 P/N:266007-8 Part No.: 266007-8 $0.11 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 003: MAKITA PAN HEAD SCREW M4X45 FOR 6906 P/N:911173-3 Part No.: 911173-3
• 005: MAKITA COMPRESSION SPRING 4 P/N:232608-4 Part No.: 232608-4
• 006: MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9
• 007: MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1
• 009: MAKITA CONTROLLER FOR DST121/421 P/N:632P85-0 Part No.: 632P85-0
• 010: MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2
• 012: MAKITA SWITCH UNIT FOR DPT353 P/N:632G60-2 Part No.: 632G60-2
• 014: MAKITA SWITCH FOR DFT/DFN/DVC/VC006GM P/N:651910-0 Part No.: 651910-0
• 015: MAKITA COMPRESSION SPRING 5 FOR PT352D P/N:232370-1 Part No.: 232370-1
• 016: MAKITA TRIGGER FOR DPT353 P/N:457386-7 Part No.: 457386-7
• 017: MAKITA SWITCH UNIT FOR DFN350/DPT353/DST121 P/N:632K06-2 Part No.: 632K06-2
• 019: MAKITA BINDING HEAD SCREW M4X6 FOR PT352D P/N:915101-0 Part No.: 915101-0
• 020: MAKITA FRONT COVER P/N:412495-9 Part No.: 412495-9
• 021: MAKITA UPPER PLATE P/N:347528-0 Part No.: 347528-0
• 022: MAKITA FLAT FILLISTER HD. PIN 4 P/N:256882-0 Part No.: 256882-0
• 023: MAKITA DRIVER P/N:347684-6 Part No.: 347684-6
• 024: MAKITA RAIL P/N:347683-8 Part No.: 347683-8
• 026: MAKITA COUNTER WEIGHT B P/N:310925-3 Part No.: 310925-3
• 027: MAKITA H.S.H BOLT M4X6 WITH W FOR DPT353 P/N:251566-5 Part No.: 251566-5
• 028: MAKITA PINION GUIDE FOR PT352D P/N:347146-4 Part No.: 347146-4
• 030: MAKITA SPUR GEAR ASSEMBLY P/N:136104-3 Part No.: 136104-3
• 032: MAKITA PINION SHAFT FOR PT352D P/N:326902-5 Part No.: 326902-5
• 033: MAKITA H.S.H BOLT M4X6 FOR ST001G P/N:266199-3 Part No.: 266199-3
• 034: MAKITA GUIDE RAIL R FOR PT352D P/N:347145-6 Part No.: 347145-6
• 035: MAKITA GUIDE RAIL L FOR PT352D P/N:347144-8 Part No.: 347144-8
• 036: MAKITA GUIDE BOLT FOR DST/DFN/DPT P/N:326903-3 Part No.: 326903-3
• 037: MAKITA BOTTOM PLATE FOR DFN350 P/N:347728-2 Part No.: 347728-2
• 038: MAKITA SPRING HOLDER P/N:459311-4 Part No.: 459311-4
• 039: MAKITA SPRING BASE P/N:347522-2 Part No.: 347522-2
• 040: MAKITA COMPRESSION SPRING 17 P/N:232511-9 Part No.: 232511-9
• 041: MAKITA HAMMER FOR DFN/DST P/N:347735-5 Part No.: 347735-5
• 042: MAKITA CUSHION P/N:422457-9 Part No.: 422457-9
• 043: MAKITA FLAT WASHER 6 FOR 6095DWE P/N:253804-1 Part No.: 253804-1
• 045: MAKITA HOLDER P/N:319984-4 Part No.: 319984-4
• 046: MAKITA HEX. NUT M6 P/N:252273-3 Part No.: 252273-3
• 047: MAKITA COUNTER STOPPER P/N:347729-0 Part No.: 347729-0
• 048: MAKITA COUNTER CUSHION P/N:422592-3 Part No.: 422592-3
• 050: MAKITA COMPRESSION SPRING 7 P/N:232630-1 Part No.: 232630-1
• 051: MAKITA GUIDE PIPE P/N:327592-7 Part No.: 327592-7
