MAKITA DPB182 CORDLESS PORTBABLE BAND SAW SPARE PARTS

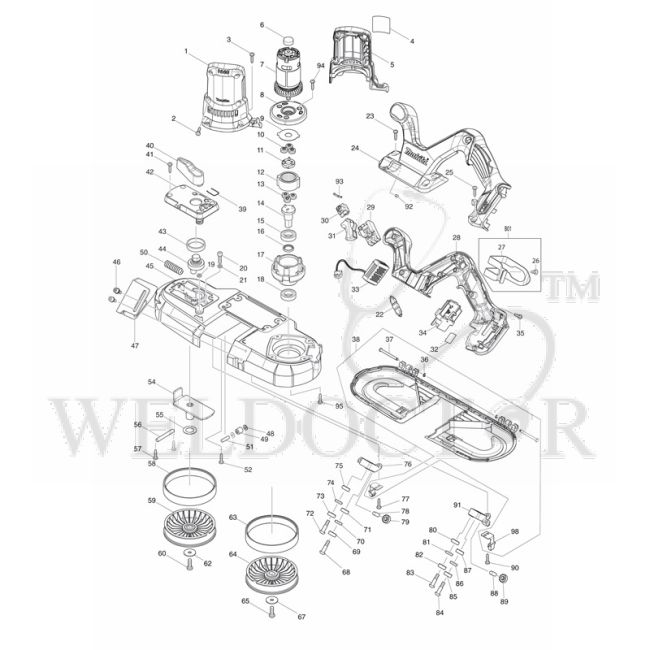

Spare Parts of Makita DPB182 Portable Band Saw Ref. No. Part Name & Number Price 001 MAKITA MOTOR HOUSING SET FOR DPB181/182 P/N:187711-5 Part No.: 187711-5 $12.54 Add To Cart 003 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 005 MAKITA MOTOR HOUSING SET FOR DPB181/182 P/N:187711-5 Part No.: 187711-5 $12.54 Add To Cart 006 MAKITA CAP FOR 8390D P/N:421940-3 Part No.: 421940-3 $0.33 Add To Cart 007 MAKITA DC MOTOR FOR DPB182 P/N:629402-7 Part No.: 629402-7 $58.10 Add To Cart 010 MAKITA SPUR GEAR 14 FOR DPB181Z P/N:227331-4 Part No.: 227331-4 $0.44 Add To Cart 011 MAKITA SPUR GEAR 7 COMPLETE R/P P/N:144386-3 Part No.: 144386-3 $2.73 Add To Cart 012 MAKITA INTERNAL GEAR 36 FOR PB181D P/N:227332-2 Part No.: 227332-2 $2.73 Add To Cart 013 MAKITA SPUR GEAR 14 P/N:226900-8 Part No.: 226900-8 $0.22 Add To Cart 014 MAKITA SPINDLE COMPLETE FOR DPB182 P/N:140J06-7 Part No.: 140J06-7 $12.97 Add To Cart 015 MAKITA BALL BEARING 6902ZZ FOR MT603 P/N:211242-3 Part No.: 211242-3 $1.74 Add To Cart 017 MAKITA GEAR HOUSING FOR DPB182 P/N:319793-1 Part No.: 319793-1 $7.09 Add To Cart 018 MAKITA BALL BEARING 6902ZZ FOR MT603 P/N:211242-3 Part No.: 211242-3 $1.74 Add To Cart 023 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 024 MAKITA HANDLE SET P/N:187763-6 Part No.: 187763-6 $34.88 Add To Cart 025 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 028 MAKITA HANDLE SET P/N:187763-6 Part No.: 187763-6 $34.88 Add To Cart 029 MAKITA SWITCH TG73BDS-1 FOR DPB181 P/N:650705-8 Part No.: 650705-8 $21.15 Add To Cart 030 MAKITA LOCK OFF BUTTON FOR DPB181 P/N:419504-5 Part No.: 419504-5 $3.60 Add To Cart 033 MAKITA CONTROLLER UNIT FOR DPB182 P/N:632L42-4 Part No.: 632L42-4 $30.63 Add To Cart 034 MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2 $3.92 Add To Cart 039 MAKITA RING SPRING 12 FOR N5900B Part No.: 231955-0 $0.33 Add To Cart 040 MAKITA LEVER 54 FOR N5900B Part No.: 272230-5 $0.76 Add To Cart 041 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 042 MAKITA LEVER HOLDER P/N:459084-9 Part No.: 459084-9 $1.85 Add To Cart 045 MAKITA FRAME COMPLETE P/N:140J09-1 Part No.: 140J09-1 $70.31 Add To Cart 047 MAKITA STOPPER PLATE FOR DPB181 P/N:346728-9 Part No.: 346728-9 $5.56 Add To Cart 048 MAKITA FLAT WASHER 5 FOR JS1670 P/N:267010-2 Part No.: 267010-2 $0.33 Add To Cart 049 MAKITA NEEDLE BEARING 510 P/N:212199-1 Part No.: 212199-1 $3.60 Add To Cart 051 MAKITA PIN 5 FOR JS1670 P/N:256155-1 Part No.: 256155-1 $0.55 Add To Cart 052 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 054 MAKITA SLIDE PLATE P/N:162564-3 Part No.: 162564-3 $6.43 Add To Cart 055 MAKITA FLAT WASHER 15 FOR HP2040 P/N:267164-5 Part No.: 267164-5 $0.33 Add To Cart 056 MAKITA PIN 6 P/N:268241-6 Part No.: 268241-6 $0.87 Add To Cart 057 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 058 MAKITA RUBBER TIRE FOR PB181D P/N:424589-8 Part No.: 424589-8 $1.42 Add To Cart 059 MAKITA WHEEL COMPLETE A FOR DPB182 P/N:140J07-5 Part No.: 140J07-5 $13.41 Add To Cart 062 MAKITA FLAT WASHER 6 P/N:267173-4 Part No.: 267173-4 $0.87 Add To Cart 063 MAKITA RUBBER TIRE FOR PB181D P/N:424589-8 Part No.: 424589-8 $1.42 Add To Cart 064 MAKITA WHEEL B P/N:459087-3 Part No.: 459087-3 $7.63 Add To Cart 067 MAKITA FLAT WASHER 6 P/N:267173-4 Part No.: 267173-4 $0.87 Add To Cart 068 MAKITA '+ PAN HEAD SCREW M5 FOR BPB180 P/N:251337-0 Part No.: 251337-0 $0.87 Add To Cart 069 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 070 MAKITA FLAT WASHER 6 FOR HM1302 P/N:941152-7 Part No.: 941152-7 $0.11 Add To Cart 071 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 072 MAKITA '+ PAN HEAD SCREW M5 FOR BPB180 P/N:251337-0 Part No.: 251337-0 $0.87 Add To Cart 073 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 074 MAKITA FLAT WASHER 6 FOR HM1302 P/N:941152-7 Part No.: 941152-7 $0.11 Add To Cart 075 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 077 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 078 MAKITA PIN 6 FOR BTW201 / 6905B P/N:256033-5 Part No.: 256033-5 $0.65 Add To Cart 079 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 080 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 081 MAKITA FLAT WASHER 6 FOR HM1302 P/N:941152-7 Part No.: 941152-7 $0.11 Add To Cart 082 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 083 MAKITA '+ PAN HEAD SCREW M5 FOR BPB180 P/N:251337-0 Part No.: 251337-0 $0.87 Add To Cart 084 MAKITA '+ PAN HEAD SCREW M5 FOR BPB180 P/N:251337-0 Part No.: 251337-0 $0.87 Add To Cart 085 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 086 MAKITA FLAT WASHER 6 FOR HM1302 P/N:941152-7 Part No.: 941152-7 $0.11 Add To Cart 087 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 088 MAKITA PIN 6 FOR BTW201 / 6905B P/N:256033-5 Part No.: 256033-5 $0.65 Add To Cart 089 MAKITA BALL BEARING 696ZZ P/N:210187-2 Part No.: 210187-2 $0.87 Add To Cart 090 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 092 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 093 MAKITA LEAF SPRING FOR PV7000C P/N:232201-4 Part No.: 232201-4 $1.31 Add To Cart 094 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 095 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA MOTOR HOUSING SET FOR DPB181/182 P/N:187711-5 Part No.: 187711-5
• 003: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 005: MAKITA MOTOR HOUSING SET FOR DPB181/182 P/N:187711-5 Part No.: 187711-5
• 006: MAKITA CAP FOR 8390D P/N:421940-3 Part No.: 421940-3
• 007: MAKITA DC MOTOR FOR DPB182 P/N:629402-7 Part No.: 629402-7
• 010: MAKITA SPUR GEAR 14 FOR DPB181Z P/N:227331-4 Part No.: 227331-4
• 011: MAKITA SPUR GEAR 7 COMPLETE R/P P/N:144386-3 Part No.: 144386-3
• 012: MAKITA INTERNAL GEAR 36 FOR PB181D P/N:227332-2 Part No.: 227332-2
• 013: MAKITA SPUR GEAR 14 P/N:226900-8 Part No.: 226900-8
• 014: MAKITA SPINDLE COMPLETE FOR DPB182 P/N:140J06-7 Part No.: 140J06-7
• 015: MAKITA BALL BEARING 6902ZZ FOR MT603 P/N:211242-3 Part No.: 211242-3
• 017: MAKITA GEAR HOUSING FOR DPB182 P/N:319793-1 Part No.: 319793-1
• 018: MAKITA BALL BEARING 6902ZZ FOR MT603 P/N:211242-3 Part No.: 211242-3
• 023: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 024: MAKITA HANDLE SET P/N:187763-6 Part No.: 187763-6
• 025: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 028: MAKITA HANDLE SET P/N:187763-6 Part No.: 187763-6
• 029: MAKITA SWITCH TG73BDS-1 FOR DPB181 P/N:650705-8 Part No.: 650705-8
• 030: MAKITA LOCK OFF BUTTON FOR DPB181 P/N:419504-5 Part No.: 419504-5
• 033: MAKITA CONTROLLER UNIT FOR DPB182 P/N:632L42-4 Part No.: 632L42-4
• 034: MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2
• 039: MAKITA RING SPRING 12 FOR N5900B Part No.: 231955-0
• 040: MAKITA LEVER 54 FOR N5900B Part No.: 272230-5
• 041: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 042: MAKITA LEVER HOLDER P/N:459084-9 Part No.: 459084-9
• 045: MAKITA FRAME COMPLETE P/N:140J09-1 Part No.: 140J09-1
• 047: MAKITA STOPPER PLATE FOR DPB181 P/N:346728-9 Part No.: 346728-9
• 048: MAKITA FLAT WASHER 5 FOR JS1670 P/N:267010-2 Part No.: 267010-2
• 049: MAKITA NEEDLE BEARING 510 P/N:212199-1 Part No.: 212199-1
• 051: MAKITA PIN 5 FOR JS1670 P/N:256155-1 Part No.: 256155-1
• 052: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 054: MAKITA SLIDE PLATE P/N:162564-3 Part No.: 162564-3
• 055: MAKITA FLAT WASHER 15 FOR HP2040 P/N:267164-5 Part No.: 267164-5
• 056: MAKITA PIN 6 P/N:268241-6 Part No.: 268241-6
• 057: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 058: MAKITA RUBBER TIRE FOR PB181D P/N:424589-8 Part No.: 424589-8
• 059: MAKITA WHEEL COMPLETE A FOR DPB182 P/N:140J07-5 Part No.: 140J07-5
• 062: MAKITA FLAT WASHER 6 P/N:267173-4 Part No.: 267173-4
• 063: MAKITA RUBBER TIRE FOR PB181D P/N:424589-8 Part No.: 424589-8
