MAKITA DHR242 24MM CORDLESS COMBI. HAMMER SPARE PARTS

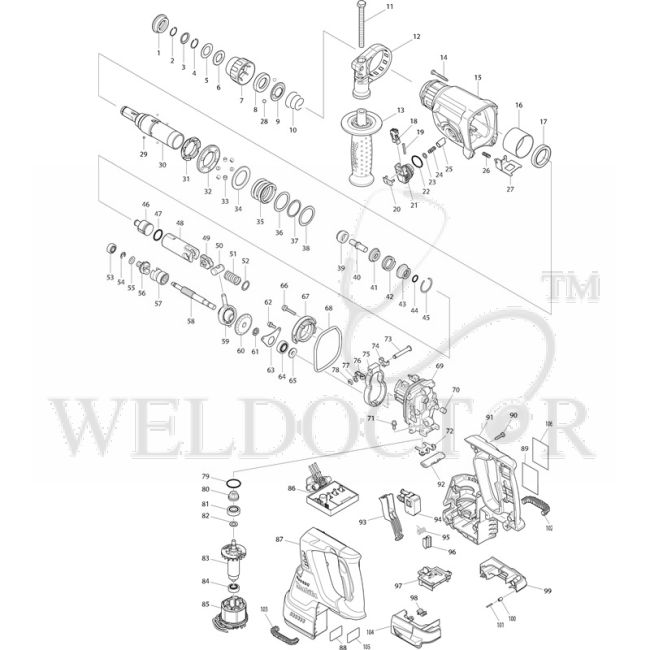

Spare Parts of Makita DHR242 Combi Hammer Ref. No. Part Name & Number Price 001 MAKITA CAP 35 FOR HR2600 P/N:286288-8 Part No.: 286288-8 $0.55 Add To Cart 002 MAKITA RING SPRING FOR HR2610 P/N:233989-9 Part No.: 233989-9 $0.11 Add To Cart 003 MAKITA WASHER 16 FOR HR2610 P/N:346221-3 Part No.: 346221-3 $0.65 Add To Cart 004 MAKITA RING SPRING FOR HR2610 P/N:233992-0 Part No.: 233992-0 $0.33 Add To Cart 005 MAKITA FLAT WASHER 17 FOR HR2610 P/N:267437-6 Part No.: 267437-6 $0.33 Add To Cart 006 MAKITA RUBBER WASHER 16 FOR HR2610 P/N:424364-2 Part No.: 424364-2 $0.33 Add To Cart 007 MAKITA CHUCK COVER FOR HR2610 P/N:451533-2 Part No.: 451533-2 $0.87 Add To Cart 008 MAKITA RING 21 FOR HR2610 P/N:325813-1 Part No.: 325813-1 $1.20 Add To Cart 009 MAKITA GUIDE WASHER FOR HR2610 P/N:346177-0 Part No.: 346177-0 $0.44 Add To Cart 010 MAKITA CONICAL COMP.SPRING 21-20 /HR2020 HR2810 P/N:233916-6 Part No.: 233916-6 $0.33 Add To Cart 012 MAKITA GRIP BASE FOR HR242D P/N:453129-5 Part No.: 453129-5 $1.53 Add To Cart 013 MAKITA GRIP 36 COMPLETE FOR HR2470 P/N:158057-6 Part No.: 158057-6 $3.92 Add To Cart 014 MAKITA PAN HEAD SCREW M4X35 P/N:266351-3 Part No.: 266351-3 $0.33 Add To Cart 015 MAKITA GEAR HOUSING FOR DHR242 P/N:141229-0 Part No.: 141229-0 $7.30 Add To Cart 016 MAKITA CUP SLEEVE FOR HR2610 P/N:331890-3 Part No.: 331890-3 $3.38 Add To Cart 017 MAKITA BALL BEARING 6806LLU P/N:211294-4 Part No.: 211294-4 $5.45 Add To Cart 018 MAKITA LOCK BUTTON FOR HR242D P/N:454112-5 Part No.: 454112-5 $0.55 Add To Cart 019 MAKITA COMPRESSION SPRING3 P/N:234264-6 Part No.: 234264-6 $0.22 Add To Cart 020 MAKITA CHANGE LEVER COVER FOR HR242D P/N:453131-8 Part No.: 453131-8 $0.44 Add To Cart 021 MAKITA CHANGE LEVER FOR DHR242 P/N:453125-3 Part No.: 453125-3 $1.20 Add To Cart 022 MAKITA O RING 21 FOR HR3520 P/N:213381-5 Part No.: 213381-5 $0.76 Add To Cart 023 MAKITA THIN WASHER 6 FOR 9741 P/N:253308-3 Part No.: 253308-3 $0.33 Add To Cart 024 MAKITA COMPRESSION SPRING 5 HR2611FT P/N:234147-0 Part No.: 234147-0 $0.11 Add To Cart 025 MAKITA PUSH CORN FOR HR2610 P/N:325785-0 Part No.: 325785-0 $0.87 Add To Cart 026 MAKITA COMPRESSION SPRING 4 FOR MT953 P/N:233360-7 Part No.: 233360-7 $0.22 Add To Cart 027 MAKITA LOCK PLATE FOR HR242D P/N:346537-6 Part No.: 346537-6 $1.31 Add To Cart 028 MAKITA STEEL BALL 7.0 FOR HR3000C HR2810 P/N:216022-2 Part No.: 216022-2 $0.11 Add To Cart 029 MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1 $0.11 Add To Cart 030 MAKITA TOOL HOLDER COMPLETE FOR DHR242/HR26 P/N:140265-3 Part No.: 140265-3 $26.16 Add To Cart 035 MAKITA COMPRESSION SPRING 31 P/N:234148-8 Part No.: 234148-8 $1.20 Add To Cart 036 MAKITA PLAT WASHER 30 P/N:267153-0 Part No.: 267153-0 $0.55 Add To Cart 037 MAKITA SPIRO LOCK WASHER 30 HR2611FT P/N:257932-4 Part No.: 257932-4 $3.05 Add To Cart 038 MAKITA PLAT WASHER 30 P/N:267153-0 Part No.: 267153-0 $0.55 Add To Cart 039 MAKITA SLEEVE 9B FOR HR2611F P/N:325783-4 Part No.: 325783-4 $1.31 Add To Cart 040 MAKITA IMPACT BOLT A FOR HR2610 P/N:325789-2 Part No.: 325789-2 $1.20 Add To Cart 041 MAKITA WASHER 10 FOR HR2611F P/N:325792-3 Part No.: 325792-3 $1.42 Add To Cart 042 MAKITA COMPRESSION SPRING 20 P/N:234149-6 Part No.: 234149-6 $0.76 Add To Cart 043 MAKITA O-RING CASE B FOR HR2601 P/N:325793-1 Part No.: 325793-1 $2.94 Add To Cart 044 MAKITA O RING 9 FOR HR2020 HR2810 P/N:213073-6 Part No.: 213073-6 $0.44 Add To Cart 045 MAKITA RING SPRING 28 P/N:233979-2 Part No.: 233979-2 $0.11 Add To Cart 046 MAKITA STRIKER FOR HR242D P/N:326139-4 Part No.: 326139-4 $4.14 Add To Cart 047 MAKITA O RING 17.5 FOR HR2210 P/N:213258-4 Part No.: 213258-4 $0.98 Add To Cart 048 MAKITA PISTON CYLINDER FOR HR2610 P/N:310345-1 Part No.: 310345-1 $8.39 Add To Cart 049 MAKITA GUIDE PLATE FOR HR261D P/N:346036-8 Part No.: 346036-8 $0.44 Add To Cart 050 MAKITA PISTON JOINT FOR HR2020 P/N:324215-8 Part No.: 324215-8 $0.87 Add To Cart 051 MAKITA COMPRESSION SPRING 14 FOR HR2610 P/N:234098-7 Part No.: 234098-7 $0.33 Add To Cart 052 MAKITA FLAT WASHER 14 FOR HR2610 P/N:267447-3 Part No.: 267447-3 $0.33 Add To Cart 053 MAKITA BALL BEARING 606ZZ FOR 9523NB P/N:211012-0 Part No.: 211012-0 $1.74 Add To Cart 054 MAKITA STOP RING EXT U-6 FOR BHR242 P/N:257336-0 Part No.: 257336-0 $0.33 Add To Cart 055 MAKITA FLAT WASHER 7 FOR HR160DWA P/N:253186-1 Part No.: 253186-1 $0.22 Add To Cart 056 MAKITA SPUR GEAR 10 P/N:227231-8 Part No.: 227231-8 $6.00 Add To Cart 058 MAKITA CAM SHAFT FOR HR242D P/N:326140-9 Part No.: 326140-9 $5.67 Add To Cart 059 MAKITA SWASH BEARING 10 P/N:219020-5 Part No.: 219020-5 $30.41 Add To Cart 060 MAKITA SPIRAL BEVEL GEAR 32 FOR HR242D P/N:227588-7 Part No.: 227588-7 $6.10 Add To Cart 061 MAKITA RING 8 FOR HR242D P/N:257323-9 Part No.: 257323-9 $0.76 Add To Cart 063 MAKITA BEARING RETAINER B FOR HR261D P/N:346038-4 Part No.: 346038-4 $0.55 Add To Cart 064 MAKITA BALL BEARING 608ZZ FOR N1900B P/N:211032-4 Part No.: 211032-4 $1.42 Add To Cart 065 MAKITA RING 8 FOR HR2020 P/N:324212-4 Part No.: 324212-4 $0.76 Add To Cart 066 MAKITA HEX. SOCKET HEAD 130LT M4X25 FOR JS1670 P/N:922147-9 Part No.: 922147-9 $0.44 Add To Cart 067 MAKITA INNER SUPPORT COMPLETE FOR DHR242 P/N:141230-5 Part No.: 141230-5 $3.60 Add To Cart 068 MAKITA O RING 75 FOR HR242D P/N:213767-3 Part No.: 213767-3 $1.09 Add To Cart 069 MAKITA INNER HOUSING FOR HR242D P/N:318810-4 Part No.: 318810-4 $21.04 Add To Cart 070 MAKITA FELT FOR HR2610 P/N:443153-6 Part No.: 443153-6 $0.44 Add To Cart 072 MAKITA BEARING RETAINER A FOR HR242D P/N:346536-8 Part No.: 346536-8 $1.20 Add To Cart 073 MAKITA FLAT FILLISTER HD PIN 6 FOR DHR242 P/N:256536-9 Part No.: 256536-9 $1.09 Add To Cart 074 MAKITA WEIGHT HOLDER GUIDE FOR HR242D P/N:346538-4 Part No.: 346538-4 $0.44 Add To Cart 075 MAKITA COUNTER WEIGHT FOR HR242D P/N:313224-2 Part No.: 313224-2 $3.82 Add To Cart 076 MAKITA WEIGHT HOLDER GUIDE FOR HR242D P/N:346538-4 Part No.: 346538-4 $0.44 Add To Cart 077 MAKITA FLAT WASHER 6 FOR 6793D P/N:253726-5 Part No.: 253726-5 $0.22 Add To Cart 078 MAKITA STOP RING E-5 FOR 4300BV P/N:961018-5 Part No.: 961018-5 $0.11 Add To Cart 079 MAKITA O RING 22.4 FOR 5600NB P/N:213008-7 Part No.: 213008-7 $0.33 Add To Cart 080 MAKITA SPIRAL BEVEL GEAR 11 FOR DHR242 P/N:141458-5 Part No.: 141458-5 $5.23 Add To Cart 081 MAKITA BALL BEARING 608 2RS FOR HR3000C HR2810 P/N:210024-0 Part No.: 210024-0 $2.51 Add To Cart 082 MAKITA FLAT WASHER 8 FOR LS0711B P/N:253835-0 Part No.: 253835-0 $0.33 Add To Cart 084 MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4 $2.73 Add To Cart 092 MAKITA R/F CHANGE LEVER FOR HR242D P/N:453124-5 Part No.: 453124-5 $0.55 Add To Cart 093 MAKITA SWITCH LEVER FOR DHR242 P/N:453123-7 Part No.: 453123-7 $0.76 Add To Cart 094 MAKITA SWITCH C3JW-1A-P FOR DHR242 P/N:650709-0 Part No.: 650709-0 $15.70 Add To Cart 095 MAKITA TORSION SPRING 6 FOR HR242D P/N:233598-4 Part No.: 233598-4 $0.33 Add To Cart 096 MAKITA OPENER FOR HR242D P/N:313226-8 Part No.: 313226-8 $0.87 Add To Cart 097 MAKITA TERMINAL FOR HR244D P/N:644808-8 Part No.: 644808-8 $3.71 Add To Cart 098 MAKITA CUSHION FOR HR242D P/N:424476-1 Part No.: 424476-1 $0.33 Add To Cart 099 MAKITA BATTERY HOUSING SET FOR DHR242 P/N:187377-1 Part No.: 187377-1 $6.32 Add To Cart 100 MAKITA RUBBER PIN 5 P/N:263036-2 Part No.: 263036-2 $0.65 Add To Cart 101 MAKITA PIN 1.5 FOR BHR241 P/N:268184-2 Part No.: 268184-2 $0.22 Add To Cart 102 MAKITA CUSHION RUBBER FOR HR242D P/N:424473-7 Part No.: 424473-7 $1.64 Add To Cart 103 MAKITA CUSHION RUBBER FOR HR242D P/N:424473-7 Part No.: 424473-7 $1.64 Add To Cart 104 MAKITA BATTERY HOUSING SET FOR DHR242 P/N:187377-1 Part No.: 187377-1 $6.32 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA CAP 35 FOR HR2600 P/N:286288-8 Part No.: 286288-8
• 002: MAKITA RING SPRING FOR HR2610 P/N:233989-9 Part No.: 233989-9
• 003: MAKITA WASHER 16 FOR HR2610 P/N:346221-3 Part No.: 346221-3
• 004: MAKITA RING SPRING FOR HR2610 P/N:233992-0 Part No.: 233992-0
• 005: MAKITA FLAT WASHER 17 FOR HR2610 P/N:267437-6 Part No.: 267437-6
• 006: MAKITA RUBBER WASHER 16 FOR HR2610 P/N:424364-2 Part No.: 424364-2
• 007: MAKITA CHUCK COVER FOR HR2610 P/N:451533-2 Part No.: 451533-2
• 008: MAKITA RING 21 FOR HR2610 P/N:325813-1 Part No.: 325813-1
• 009: MAKITA GUIDE WASHER FOR HR2610 P/N:346177-0 Part No.: 346177-0
• 010: MAKITA CONICAL COMP.SPRING 21-20 /HR2020 HR2810 P/N:233916-6 Part No.: 233916-6
• 012: MAKITA GRIP BASE FOR HR242D P/N:453129-5 Part No.: 453129-5
• 013: MAKITA GRIP 36 COMPLETE FOR HR2470 P/N:158057-6 Part No.: 158057-6
• 014: MAKITA PAN HEAD SCREW M4X35 P/N:266351-3 Part No.: 266351-3
• 015: MAKITA GEAR HOUSING FOR DHR242 P/N:141229-0 Part No.: 141229-0
• 016: MAKITA CUP SLEEVE FOR HR2610 P/N:331890-3 Part No.: 331890-3
• 017: MAKITA BALL BEARING 6806LLU P/N:211294-4 Part No.: 211294-4
• 018: MAKITA LOCK BUTTON FOR HR242D P/N:454112-5 Part No.: 454112-5
• 019: MAKITA COMPRESSION SPRING3 P/N:234264-6 Part No.: 234264-6
• 020: MAKITA CHANGE LEVER COVER FOR HR242D P/N:453131-8 Part No.: 453131-8
• 021: MAKITA CHANGE LEVER FOR DHR242 P/N:453125-3 Part No.: 453125-3
• 022: MAKITA O RING 21 FOR HR3520 P/N:213381-5 Part No.: 213381-5
• 023: MAKITA THIN WASHER 6 FOR 9741 P/N:253308-3 Part No.: 253308-3
• 024: MAKITA COMPRESSION SPRING 5 HR2611FT P/N:234147-0 Part No.: 234147-0
• 025: MAKITA PUSH CORN FOR HR2610 P/N:325785-0 Part No.: 325785-0
• 026: MAKITA COMPRESSION SPRING 4 FOR MT953 P/N:233360-7 Part No.: 233360-7
• 027: MAKITA LOCK PLATE FOR HR242D P/N:346537-6 Part No.: 346537-6
• 028: MAKITA STEEL BALL 7.0 FOR HR3000C HR2810 P/N:216022-2 Part No.: 216022-2
• 029: MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1
• 030: MAKITA TOOL HOLDER COMPLETE FOR DHR242/HR26 P/N:140265-3 Part No.: 140265-3
• 035: MAKITA COMPRESSION SPRING 31 P/N:234148-8 Part No.: 234148-8
• 036: MAKITA PLAT WASHER 30 P/N:267153-0 Part No.: 267153-0
• 037: MAKITA SPIRO LOCK WASHER 30 HR2611FT P/N:257932-4 Part No.: 257932-4
• 038: MAKITA PLAT WASHER 30 P/N:267153-0 Part No.: 267153-0
• 039: MAKITA SLEEVE 9B FOR HR2611F P/N:325783-4 Part No.: 325783-4
• 040: MAKITA IMPACT BOLT A FOR HR2610 P/N:325789-2 Part No.: 325789-2
• 041: MAKITA WASHER 10 FOR HR2611F P/N:325792-3 Part No.: 325792-3
• 042: MAKITA COMPRESSION SPRING 20 P/N:234149-6 Part No.: 234149-6
• 043: MAKITA O-RING CASE B FOR HR2601 P/N:325793-1 Part No.: 325793-1
• 044: MAKITA O RING 9 FOR HR2020 HR2810 P/N:213073-6 Part No.: 213073-6
