MAKITA DGA417 100MM CORDLESS ANGLE GRINDER SPARE PARTS

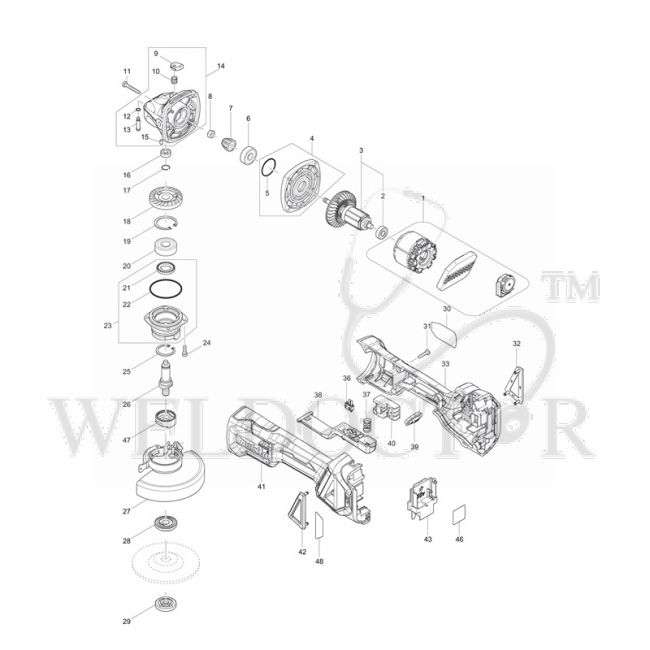

Spare Parts of Makita DGA417 Angle Grinder Ref. No. Part Name & Number Price 002 MAKITA BALL BEARING 607LLB FOR M9506 P/N:210169-4 Part No.: 210169-4 $1.09 Add To Cart 003 MAKITA ROTOR ASS'Y FOR DGA P/N:510329-1 Part No.: 510329-1 $21.47 Add To Cart 004 MAKITA GEAR HOUSING COVER ASSEMBLY FOR 9557NB P/N:135930-7 Part No.: 135930-7 $4.80 Add To Cart 005 MAKITA O RING 26 FOR HR2810 P/N:213445-5 Part No.: 213445-5 $0.33 Add To Cart 006 MAKITA BALL BEARING 629LLB FOR 2414NB P/N:210042-8 Part No.: 210042-8 $2.62 Add To Cart 007 MAKITA SPIRAL BEVEL GEAR 10 FOR 9556PB P/N:227541-3 Part No.: 227541-3 $2.94 Add To Cart 008 MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8 $0.11 Add To Cart 009 MAKITA PIN CAP FOR MT950 P/N:417771-6 Part No.: 417771-6 $0.33 Add To Cart 011 MAKITA TAPPING SCREW 4X30 FOR 9556NB P/N:266361-0 Part No.: 266361-0 $0.33 Add To Cart 012 MAKITA O RING 5 P/N:213960-9 Part No.: 213960-9 $0.11 Add To Cart 013 MAKITA SHOULDER PIN 4 FOR DC/AC-GA P/N:256546-6 Part No.: 256546-6 $0.55 Add To Cart 014 MAKITA GEAR HOUSING ASSEMBLY FOR 9557HN P/N:135929-2 Part No.: 135929-2 $11.23 Add To Cart 015 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 017 MAKITA RING SPRING 11 FOR 9553HN P/N:233950-6 Part No.: 233950-6 $0.11 Add To Cart 019 MAKITA RETAINING RING R-32 P/N:962151-6 Part No.: 962151-6 $0.55 Add To Cart 021 MAKITA FELT RING P/N:262153-5 Part No.: 262153-5 $0.98 Add To Cart 022 MAKITA O RING 45 FOR 9553NB P/N:213622-9 Part No.: 213622-9 $0.33 Add To Cart 023 MAKITA BEARING BOX ASSEMBLY FOR GA406D P/N:135949-6 Part No.: 135949-6 $5.89 Add To Cart 024 MAKITA PAN HEAD SCREW M4X14 FOR 9526B P/N:911121-2 Part No.: 911121-2 $0.11 Add To Cart 025 MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3 $0.55 Add To Cart 026 MAKITA SPINDLE FOR DC-GA 4" P/N:326669-5 Part No.: 326669-5 $8.28 Add To Cart 032 MAKITA DUST COVER R FOR GA454D P/N:455450-8 Part No.: 455450-8 $3.92 Add To Cart 033 MAKITA MOTOR HOUSING FOR DGA417 P/N:183H86-8 Part No.: 183H86-8 $23.22 Add To Cart 037 MAKITA COMPRESSION SPRING 11 FOR GA405D P/N:234357-9 Part No.: 234357-9 $0.22 Add To Cart 038 MAKITA SWITCH LEVER COMPLETE FOR DGA408/417 P/N:142976-6 Part No.: 142976-6 $5.78 Add To Cart 039 MAKITA INDICATOR PANEL COMPLETE FOR GA454D P/N:142901-7 Part No.: 142901-7 $0.98 Add To Cart 040 MAKITA SWITCH FOR DHS680/DGA-P P/N:650734-1 Part No.: 650734-1 $14.17 Add To Cart 041 MAKITA MOTOR HOUSING FOR DGA417 P/N:183H86-8 Part No.: 183H86-8 $23.22 Add To Cart 042 MAKITA DUST COVER L FOR DGA P/N:455449-3 Part No.: 455449-3 $3.92 Add To Cart 043 MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2 $3.92 Add To Cart 047 MAKITA LEAD FLANGE B FOR DC/AC-GA P/N:310516-0 Part No.: 310516-0 $14.82 Add To Cart 049 MAKITA CONTROLLER FOR DGA417 P/N:620K21-8 Part No.: 620K21-8 $134.18 Add To Cart 050 MAKITA PAN HEAD SCREW M2X6 FOR 18V DGA P/N:652119-7 Part No.: 652119-7 $0.11 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 002: MAKITA BALL BEARING 607LLB FOR M9506 P/N:210169-4 Part No.: 210169-4
• 003: MAKITA ROTOR ASS'Y FOR DGA P/N:510329-1 Part No.: 510329-1
• 004: MAKITA GEAR HOUSING COVER ASSEMBLY FOR 9557NB P/N:135930-7 Part No.: 135930-7
• 005: MAKITA O RING 26 FOR HR2810 P/N:213445-5 Part No.: 213445-5
• 006: MAKITA BALL BEARING 629LLB FOR 2414NB P/N:210042-8 Part No.: 210042-8
• 007: MAKITA SPIRAL BEVEL GEAR 10 FOR 9556PB P/N:227541-3 Part No.: 227541-3
• 008: MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8
• 009: MAKITA PIN CAP FOR MT950 P/N:417771-6 Part No.: 417771-6
• 011: MAKITA TAPPING SCREW 4X30 FOR 9556NB P/N:266361-0 Part No.: 266361-0
• 012: MAKITA O RING 5 P/N:213960-9 Part No.: 213960-9
• 013: MAKITA SHOULDER PIN 4 FOR DC/AC-GA P/N:256546-6 Part No.: 256546-6
• 014: MAKITA GEAR HOUSING ASSEMBLY FOR 9557HN P/N:135929-2 Part No.: 135929-2
• 015: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 017: MAKITA RING SPRING 11 FOR 9553HN P/N:233950-6 Part No.: 233950-6
• 019: MAKITA RETAINING RING R-32 P/N:962151-6 Part No.: 962151-6
• 021: MAKITA FELT RING P/N:262153-5 Part No.: 262153-5
• 022: MAKITA O RING 45 FOR 9553NB P/N:213622-9 Part No.: 213622-9
• 023: MAKITA BEARING BOX ASSEMBLY FOR GA406D P/N:135949-6 Part No.: 135949-6
• 024: MAKITA PAN HEAD SCREW M4X14 FOR 9526B P/N:911121-2 Part No.: 911121-2
• 025: MAKITA RETAINING RING R-26 P/N:962105-3 Part No.: 962105-3
• 026: MAKITA SPINDLE FOR DC-GA 4" P/N:326669-5 Part No.: 326669-5
• 032: MAKITA DUST COVER R FOR GA454D P/N:455450-8 Part No.: 455450-8
• 033: MAKITA MOTOR HOUSING FOR DGA417 P/N:183H86-8 Part No.: 183H86-8
• 037: MAKITA COMPRESSION SPRING 11 FOR GA405D P/N:234357-9 Part No.: 234357-9
• 038: MAKITA SWITCH LEVER COMPLETE FOR DGA408/417 P/N:142976-6 Part No.: 142976-6
• 039: MAKITA INDICATOR PANEL COMPLETE FOR GA454D P/N:142901-7 Part No.: 142901-7
• 040: MAKITA SWITCH FOR DHS680/DGA-P P/N:650734-1 Part No.: 650734-1
• 041: MAKITA MOTOR HOUSING FOR DGA417 P/N:183H86-8 Part No.: 183H86-8
• 042: MAKITA DUST COVER L FOR DGA P/N:455449-3 Part No.: 455449-3
• 043: MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2
• 047: MAKITA LEAD FLANGE B FOR DC/AC-GA P/N:310516-0 Part No.: 310516-0
• 049: MAKITA CONTROLLER FOR DGA417 P/N:620K21-8 Part No.: 620K21-8
• 050: MAKITA PAN HEAD SCREW M2X6 FOR 18V DGA P/N:652119-7 Part No.: 652119-7
