MAKITA DFN350 35MM CORDLESS BRAD NAILER SPARE PARTS

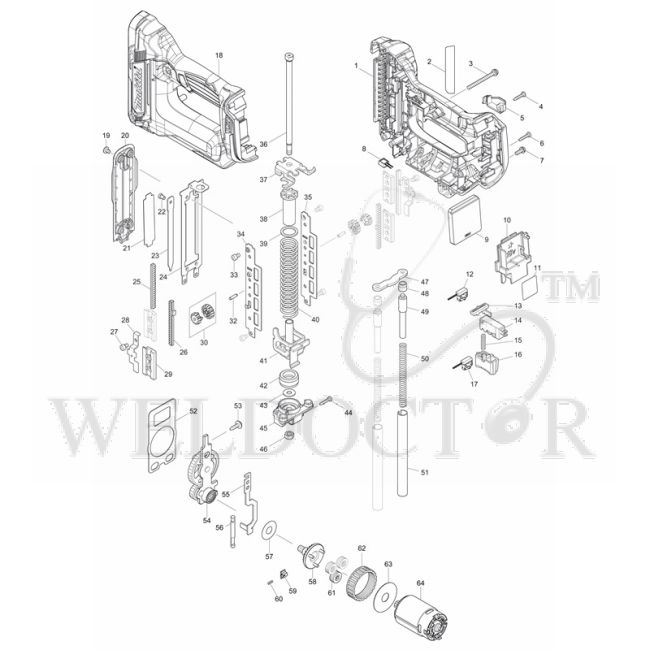

Spare Parts of Makita DFN350 Cordless Brad Nailer Ref. No. Part Name & Number Price 001 MAKITA HOUSING SET FOR DFN350 P/N:183L67-6 Part No.: 183L67-6 $49.38 Add To Cart 003 MAKITA PAN HEAD SCREW M4X45 FOR 6906 P/N:911173-3 Part No.: 911173-3 $0.44 Add To Cart 004 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 005 MAKITA HOUSING R COVER FOR DPT353 P/N:457385-9 Part No.: 457385-9 $1.85 Add To Cart 006 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 007 MAKITA PAN HEAD SCREW M4X12 FOR BO4540 HR2810 P/N:911118-1 Part No.: 911118-1 $0.33 Add To Cart 009 MAKITA CONTROLLER FOR DFN350 P/N:632N39-5 Part No.: 632N39-5 $78.15 Add To Cart 010 MAKITA TERMINAL P/N:643860-3 Part No.: 643860-3 $3.49 Add To Cart 012 MAKITA SWITCH UNIT FOR DPT353 P/N:632G60-2 Part No.: 632G60-2 $8.07 Add To Cart 014 MAKITA SWITCH FOR DFT/DFN/DVC/VC006GM P/N:651910-0 Part No.: 651910-0 $6.98 Add To Cart 015 MAKITA COMPRESSION SPRING 5 FOR PT352D P/N:232370-1 Part No.: 232370-1 $0.44 Add To Cart 016 MAKITA TRIGGER FOR DPT353 P/N:457386-7 Part No.: 457386-7 $1.85 Add To Cart 017 MAKITA SWITCH UNIT FOR DFN350/DPT353/DST121 P/N:632K06-2 Part No.: 632K06-2 $12.54 Add To Cart 018 MAKITA HOUSING SET FOR DFN350 P/N:183L67-6 Part No.: 183L67-6 $49.38 Add To Cart 019 MAKITA BINDING HEAD SCREW M4X6 FOR PT352D P/N:915101-0 Part No.: 915101-0 $0.11 Add To Cart 020 MAKITA FRONT COVER P/N:459369-3 Part No.: 459369-3 $3.60 Add To Cart 021 MAKITA UPPER PLATE P/N:347528-0 Part No.: 347528-0 $1.42 Add To Cart 022 MAKITA FLAT FILLISTER HD. PIN 4 P/N:256882-0 Part No.: 256882-0 $2.83 Add To Cart 023 MAKITA DRIVER P/N:347519-1 Part No.: 347519-1 $54.28 Add To Cart 024 MAKITA RAIL P/N:347521-4 Part No.: 347521-4 $10.46 Add To Cart 026 MAKITA COUNTER WEIGHT B P/N:310925-3 Part No.: 310925-3 $11.45 Add To Cart 027 MAKITA H.S.H BOLT M4X6 WITH W FOR DPT353 P/N:251566-5 Part No.: 251566-5 $0.65 Add To Cart 028 MAKITA PINION GUIDE FOR PT352D P/N:347146-4 Part No.: 347146-4 $3.05 Add To Cart 030 MAKITA SPUR GEAR ASSEMBLY P/N:136104-3 Part No.: 136104-3 $8.94 Add To Cart 032 MAKITA PINION SHAFT FOR PT352D P/N:326902-5 Part No.: 326902-5 $0.44 Add To Cart 033 MAKITA H.S.H BOLT M4X6 FOR ST001G P/N:266199-3 Part No.: 266199-3 $0.44 Add To Cart 034 MAKITA GUIDE RAIL R FOR PT352D P/N:347145-6 Part No.: 347145-6 $8.94 Add To Cart 035 MAKITA GUIDE RAIL L FOR PT352D P/N:347144-8 Part No.: 347144-8 $8.94 Add To Cart 036 MAKITA GUIDE BOLT FOR DST/DFN/DPT P/N:326903-3 Part No.: 326903-3 $2.07 Add To Cart 037 MAKITA BOTTOM PLATE P/N:347526-4 Part No.: 347526-4 $9.05 Add To Cart 038 MAKITA SPRING HOLDER P/N:459311-4 Part No.: 459311-4 $2.18 Add To Cart 039 MAKITA SPRING BASE P/N:347522-2 Part No.: 347522-2 $0.87 Add To Cart 040 MAKITA COMPRESSION SPRING 17 P/N:232511-9 Part No.: 232511-9 $24.42 Add To Cart 042 MAKITA CUSHION P/N:422457-9 Part No.: 422457-9 $1.53 Add To Cart 043 MAKITA FLAT WASHER 6 FOR 6095DWE P/N:253804-1 Part No.: 253804-1 $0.33 Add To Cart 044 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 045 MAKITA HOLDER P/N:319824-6 Part No.: 319824-6 $13.95 Add To Cart 046 MAKITA HEX. NUT M6 P/N:252273-3 Part No.: 252273-3 $0.98 Add To Cart 047 MAKITA COUNTER STOPPER P/N:347527-2 Part No.: 347527-2 $2.62 Add To Cart 048 MAKITA COUNTER CUSHION P/N:422456-1 Part No.: 422456-1 $6.32 Add To Cart 049 MAKITA WEIGHT FOR PT352D P/N:326904-1 Part No.: 326904-1 $2.83 Add To Cart 050 MAKITA COMPRESSION SPRING 7 FOR PT352D P/N:232363-8 Part No.: 232363-8 $0.76 Add To Cart 051 MAKITA GUIDE PIPE P/N:327328-4 Part No.: 327328-4 $10.57 Add To Cart 052 MAKITA GEAR PLATE P/N:347525-6 Part No.: 347525-6 $3.92 Add To Cart 054 MAKITA SPUR GEAR 61 COMPLETE P/N:140K45-3 Part No.: 140K45-3 $50.47 Add To Cart 055 MAKITA LOCK ARM FOR PT352D P/N:347139-1 Part No.: 347139-1 $5.12 Add To Cart 056 MAKITA LOCK PIN FOR FN350D P/N:327327-6 Part No.: 327327-6 $1.96 Add To Cart 058 MAKITA SPUR GEAR 8 COMPLETE FOR FN350D P/N:140K48-7 Part No.: 140K48-7 $9.48 Add To Cart 059 MAKITA LOCK BLOCK P/N:310945-7 Part No.: 310945-7 $6.00 Add To Cart 060 MAKITA COMPRESSION SPRING 3 P/N:232513-5 Part No.: 232513-5 $0.65 Add To Cart 061 MAKITA SPUR GEAR 27 FOR DPT353 P/N:221961-3 Part No.: 221961-3 $1.42 Add To Cart 062 MAKITA INTERNAL GEAR 69 FOR BPT351 P/N:227166-3 Part No.: 227166-3 $2.94 Add To Cart 064 MAKITA DC MOTOR FOR DFN350/DST121/DST421 P/N:629408-5 Part No.: 629408-5 $18.97 Add To Cart 065 MAKITA M4X12 BOLT FOR 4300BV Part No.: 922117-8 $0.33 Add To Cart 066 MAKITA PLATE P/N:347523-0 Part No.: 347523-0 $1.31 Add To Cart 067 MAKITA DRIVER GUIDE ASSEMBLY P/N:127291-9 Part No.: 127291-9 $141.05 Add To Cart 068 MAKITA PLATE P/N:347523-0 Part No.: 347523-0 $1.31 Add To Cart 070 MAKITA DRIVER GUIDE FOR DFN350 P/N:310942-3 Part No.: 310942-3 $40.66 Add To Cart 071 MAKITA COMPRESSION SPRING 3 FOR DFN350 P/N:232512-7 Part No.: 232512-7 $0.33 Add To Cart 072 MAKITA CENTER PLATE FOR DFN350 P/N:310943-1 Part No.: 310943-1 $42.40 Add To Cart 073 MAKITA SET PLATE FOR DFN350 P/N:310941-5 Part No.: 310941-5 $48.72 Add To Cart 074 MAKITA STOP RING E-3 FOR 4304 P/N:961017-7 Part No.: 961017-7 $0.11 Add To Cart 077 MAKITA ADJUST SHAFT FOR FN350D P/N:327326-8 Part No.: 327326-8 $1.96 Add To Cart 078 MAKITA ARM P/N:347529-8 Part No.: 347529-8 $6.21 Add To Cart 079 MAKITA ADJUSTER P/N:459310-6 Part No.: 459310-6 $1.96 Add To Cart 080 MAKITA TORSION SPRING 7 P/N:232514-3 Part No.: 232514-3 $0.76 Add To Cart 081 MAKITA ADJUSTER COVER P/N:459312-2 Part No.: 459312-2 $2.07 Add To Cart 082 MAKITA TAPPING SCREW BIND PT3X10 FOR BTW201 P/N:266007-8 Part No.: 266007-8 $0.11 Add To Cart 085 MAKITA PUSHER P/N:347520-6 Part No.: 347520-6 $6.21 Add To Cart 086 MAKITA MAGAZINE P/N:459305-9 Part No.: 459305-9 $15.04 Add To Cart 087 MAKITA SLEEVE P/N:459313-0 Part No.: 459313-0 $1.74 Add To Cart 088 MAKITA HEX.SOCKET HEAD BOLT M4X14 P/N:265A52-6 Part No.: 265A52-6 $1.42 Add To Cart 091 MAKITA SLIDE DOOR COMPLETE P/N:140K97-4 Part No.: 140K97-4 $17.00 Add To Cart 092 MAKITA LEVER FOR DPT353 P/N:457388-3 Part No.: 457388-3 $1.85 Add To Cart 094 MAKITA COMPRESSION SPRING 6 FOR GA7010C P/N:233117-6 Part No.: 233117-6 $0.22 Add To Cart 095 MAKITA PIN 3 FOR FN350D P/N:256877-3 Part No.: 256877-3 $0.65 Add To Cart 096 MAKITA THIN WASHER 5 FOR JS1600 P/N:253334-2 Part No.: 253334-2 $0.55 Add To Cart 097 MAKITA M4X12 BOLT FOR 4300BV Part No.: 922117-8 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA HOUSING SET FOR DFN350 P/N:183L67-6 Part No.: 183L67-6
• 003: MAKITA PAN HEAD SCREW M4X45 FOR 6906 P/N:911173-3 Part No.: 911173-3
• 004: MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9
• 005: MAKITA HOUSING R COVER FOR DPT353 P/N:457385-9 Part No.: 457385-9
• 006: MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9
• 007: MAKITA PAN HEAD SCREW M4X12 FOR BO4540 HR2810 P/N:911118-1 Part No.: 911118-1
• 009: MAKITA CONTROLLER FOR DFN350 P/N:632N39-5 Part No.: 632N39-5
• 010: MAKITA TERMINAL P/N:643860-3 Part No.: 643860-3
• 012: MAKITA SWITCH UNIT FOR DPT353 P/N:632G60-2 Part No.: 632G60-2
• 014: MAKITA SWITCH FOR DFT/DFN/DVC/VC006GM P/N:651910-0 Part No.: 651910-0
• 015: MAKITA COMPRESSION SPRING 5 FOR PT352D P/N:232370-1 Part No.: 232370-1
• 016: MAKITA TRIGGER FOR DPT353 P/N:457386-7 Part No.: 457386-7
• 017: MAKITA SWITCH UNIT FOR DFN350/DPT353/DST121 P/N:632K06-2 Part No.: 632K06-2
• 018: MAKITA HOUSING SET FOR DFN350 P/N:183L67-6 Part No.: 183L67-6
• 019: MAKITA BINDING HEAD SCREW M4X6 FOR PT352D P/N:915101-0 Part No.: 915101-0
• 020: MAKITA FRONT COVER P/N:459369-3 Part No.: 459369-3
• 021: MAKITA UPPER PLATE P/N:347528-0 Part No.: 347528-0
• 022: MAKITA FLAT FILLISTER HD. PIN 4 P/N:256882-0 Part No.: 256882-0
• 023: MAKITA DRIVER P/N:347519-1 Part No.: 347519-1
• 024: MAKITA RAIL P/N:347521-4 Part No.: 347521-4
• 026: MAKITA COUNTER WEIGHT B P/N:310925-3 Part No.: 310925-3
• 027: MAKITA H.S.H BOLT M4X6 WITH W FOR DPT353 P/N:251566-5 Part No.: 251566-5
• 028: MAKITA PINION GUIDE FOR PT352D P/N:347146-4 Part No.: 347146-4
• 030: MAKITA SPUR GEAR ASSEMBLY P/N:136104-3 Part No.: 136104-3
• 032: MAKITA PINION SHAFT FOR PT352D P/N:326902-5 Part No.: 326902-5
• 033: MAKITA H.S.H BOLT M4X6 FOR ST001G P/N:266199-3 Part No.: 266199-3
• 034: MAKITA GUIDE RAIL R FOR PT352D P/N:347145-6 Part No.: 347145-6
• 035: MAKITA GUIDE RAIL L FOR PT352D P/N:347144-8 Part No.: 347144-8
• 036: MAKITA GUIDE BOLT FOR DST/DFN/DPT P/N:326903-3 Part No.: 326903-3
• 037: MAKITA BOTTOM PLATE P/N:347526-4 Part No.: 347526-4
• 038: MAKITA SPRING HOLDER P/N:459311-4 Part No.: 459311-4
• 039: MAKITA SPRING BASE P/N:347522-2 Part No.: 347522-2
• 040: MAKITA COMPRESSION SPRING 17 P/N:232511-9 Part No.: 232511-9
• 042: MAKITA CUSHION P/N:422457-9 Part No.: 422457-9
• 043: MAKITA FLAT WASHER 6 FOR 6095DWE P/N:253804-1 Part No.: 253804-1
• 044: MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9
• 045: MAKITA HOLDER P/N:319824-6 Part No.: 319824-6
• 046: MAKITA HEX. NUT M6 P/N:252273-3 Part No.: 252273-3
• 047: MAKITA COUNTER STOPPER P/N:347527-2 Part No.: 347527-2
