MAKITA DF032 CORDLESS DRIVER DRILL SPARE PARTS

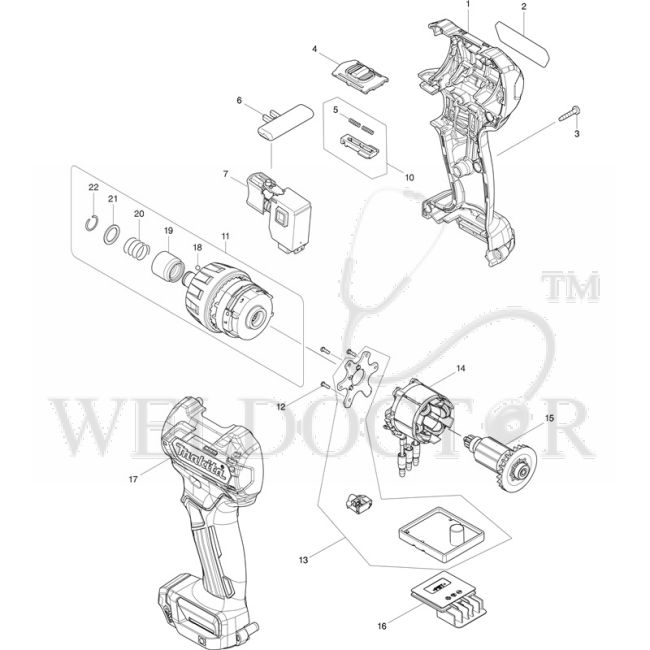

Spare Parts of Makita DF032 Cordless Driver Drill Ref. No. Part Name & Number Price 001 MAKITA HOUSING SET FOR HP332D P/N:183C34-7 Part No.: 183C34-7 $14.93 Add To Cart 003 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 004 MAKITA SPEED CHANGE LEVER FOR HP332D P/N:456532-9 Part No.: 456532-9 $1.64 Add To Cart 005 MAKITA COMPRESSION SPRING FOR 6702D Part No.: 233025-1 $0.33 Add To Cart 006 MAKITA F/R CHANGE LEVER FOR DC TOOL P/N:419041-9 Part No.: 419041-9 $0.44 Add To Cart 007 MAKITA SWITCH FOR DDF-DHP487/DF-HP332/HR166D P/N:650689-0 Part No.: 650689-0 $17.33 Add To Cart 010 MAKITA CHANGE LEVER ASSEMBLY FOR HP332D P/N:123587-6 Part No.: 123587-6 $0.87 Add To Cart 011 MAKITA GEAR ASSEMBLY FOR DF032D P/N:123550-9 Part No.: 123550-9 $29.10 Add To Cart 012 MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9 $0.33 Add To Cart 014 MAKITA STATOR FOR HP332D P/N:629178-6 Part No.: 629178-6 $14.61 Add To Cart 016 MAKITA TERMINAL FOR TD110D P/N:644813-5 Part No.: 644813-5 $2.73 Add To Cart 017 MAKITA HOUSING SET FOR HP332D P/N:183C34-7 Part No.: 183C34-7 $14.93 Add To Cart 018 MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1 $0.11 Add To Cart 019 MAKITA BIT SLEEVE FOR DF032D P/N:326677-6 Part No.: 326677-6 $2.83 Add To Cart 020 MAKITA COMPRESSION SPRING 13 FOR BTD120 6903VD P/N:233005-7 Part No.: 233005-7 $0.11 Add To Cart 021 MAKITA BIT WASHER FOR DF032D P/N:347004-4 Part No.: 347004-4 $0.44 Add To Cart 022 MAKITA RING SPRING 10 FOR TD020DW P/N:231965-7 Part No.: 231965-7 $0.22 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA HOUSING SET FOR HP332D P/N:183C34-7 Part No.: 183C34-7
• 003: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 004: MAKITA SPEED CHANGE LEVER FOR HP332D P/N:456532-9 Part No.: 456532-9
• 005: MAKITA COMPRESSION SPRING FOR 6702D Part No.: 233025-1
• 006: MAKITA F/R CHANGE LEVER FOR DC TOOL P/N:419041-9 Part No.: 419041-9
• 007: MAKITA SWITCH FOR DDF-DHP487/DF-HP332/HR166D P/N:650689-0 Part No.: 650689-0
• 010: MAKITA CHANGE LEVER ASSEMBLY FOR HP332D P/N:123587-6 Part No.: 123587-6
• 011: MAKITA GEAR ASSEMBLY FOR DF032D P/N:123550-9 Part No.: 123550-9
• 012: MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9
• 014: MAKITA STATOR FOR HP332D P/N:629178-6 Part No.: 629178-6
• 016: MAKITA TERMINAL FOR TD110D P/N:644813-5 Part No.: 644813-5
• 017: MAKITA HOUSING SET FOR HP332D P/N:183C34-7 Part No.: 183C34-7
• 018: MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1
• 019: MAKITA BIT SLEEVE FOR DF032D P/N:326677-6 Part No.: 326677-6
• 020: MAKITA COMPRESSION SPRING 13 FOR BTD120 6903VD P/N:233005-7 Part No.: 233005-7
• 021: MAKITA BIT WASHER FOR DF032D P/N:347004-4 Part No.: 347004-4
• 022: MAKITA RING SPRING 10 FOR TD020DW P/N:231965-7 Part No.: 231965-7
