MAKITA DCU180 BATTERY POWERED WHEELBARROW SPARE PARTS

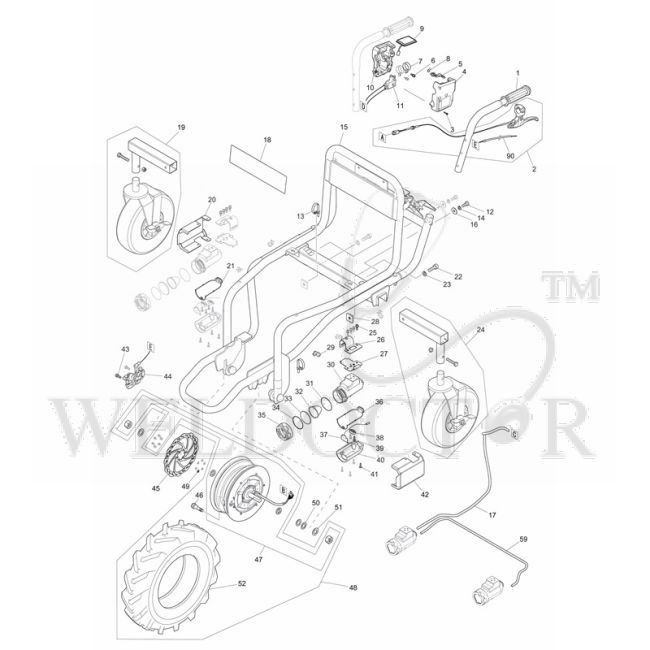

Spare Parts of Makita DCU180 Battery Powered Wheelbarrow Ref. No. Part Name & Number Price 001 MAKITA HANDLE COMPLETE FOR CU180D P/N:161640-0 Part No.: 161640-0 $27.36 Add To Cart 002 MAKITA BRAKE ASSEMBLY FOR CU180D P/N:161648-4 Part No.: 161648-4 $26.81 Add To Cart 003 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 004 MAKITA SWITCH BOX SET FOR CU180D P/N:183H15-1 Part No.: 183H15-1 $6.76 Add To Cart 005 MAKITA SWITCH LEVER FOR DCU180 P/N:457633-6 Part No.: 457633-6 $1.31 Add To Cart 006 MAKITA H.S.H. BOLT M5X16 WITH WR FOR EM2650UH P/N:922223-9 Part No.: 922223-9 $0.33 Add To Cart 008 MAKITA TORSION SPRING 11 P/N:233540-5 Part No.: 233540-5 $0.33 Add To Cart 009 MAKITA SWITCH PLATE FOR DCU180 P/N:144521-3 Part No.: 144521-3 $20.93 Add To Cart 010 MAKITA SWITCH BOX SET FOR CU180D P/N:183H15-1 Part No.: 183H15-1 $6.76 Add To Cart 011 MAKITA SWITCH FOR DUC353/DUH601-752 P/N:650781-2 Part No.: 650781-2 $19.51 Add To Cart 012 MAKITA HEX BOLT M8X20 FOR CU180D P/N:251595-8 Part No.: 251595-8 $3.05 Add To Cart 014 MAKITA SPRING WASHER 8 FOR 2414NB P/N:942201-3 Part No.: 942201-3 $0.33 Add To Cart 015 MAKITA FRAME ASSEMBLY FOR CU180D P/N:126589-1 Part No.: 126589-1 $270.32 Add To Cart 016 MAKITA FLAT WASHER 8 FOR LS1013 P/N:253852-0 Part No.: 253852-0 $0.55 Add To Cart 017 MAKITA POWER SUPPLY CORD UNIT FOR DCU180 P/N:699095-4 Part No.: 699095-4 $4.80 Add To Cart 019 MAKITA REAR TIME R ASSEMBLY FOR CU180D P/N:126893-8 Part No.: 126893-8 $89.60 Add To Cart 020 MAKITA GUARD R FOR CU180D P/N:347278-7 Part No.: 347278-7 $5.78 Add To Cart 021 MAKITA PACKING FOR CU180D P/N:422151-3 Part No.: 422151-3 $1.53 Add To Cart 022 MAKITA HEX. SOCKET HEAD BOLT M10X25 FOR 2012NB P/N:266240-2 Part No.: 266240-2 $0.65 Add To Cart 023 MAKITA FLAT WASHER 10 FOR N1923B P/N:941251-5 Part No.: 941251-5 $0.33 Add To Cart 024 MAKITA REAR TIRE L ASSY FOR CU180D P/N:126837-8 Part No.: 126837-8 $92.98 Add To Cart 025 MAKITA H.S.H. BOLT M5X16 WITH WR FOR EM2650UH P/N:922223-9 Part No.: 922223-9 $0.33 Add To Cart 026 MAKITA CLAMP A FOR CU180D P/N:347238-9 Part No.: 347238-9 $2.07 Add To Cart 027 MAKITA CLAMP B FOR CU180D P/N:347239-7 Part No.: 347239-7 $2.83 Add To Cart 028 MAKITA PLATE FOR CU180D P/N:347394-5 Part No.: 347394-5 $2.62 Add To Cart 029 MAKITA BAND FOR DCU180 P/N:687849-1 Part No.: 687849-1 $0.98 Add To Cart 030 MAKITA LIGHT CASE FOR CU180D P/N:319594-7 Part No.: 319594-7 $9.05 Add To Cart 031 MAKITA O RING 53 FOR HM1201 P/N:213656-2 Part No.: 213656-2 $0.33 Add To Cart 032 MAKITA REFLECTOR FOR CU180D P/N:457636-0 Part No.: 457636-0 $2.94 Add To Cart 033 MAKITA LENS FOR CU180D P/N:457634-4 Part No.: 457634-4 $1.09 Add To Cart 034 MAKITA O RING 50 FOR HR2010 Part No.: 213604-1 $0.65 Add To Cart 035 MAKITA COVER FOR CU180D P/N:457635-2 Part No.: 457635-2 $1.53 Add To Cart 036 MAKITA PACKING FOR CU180D P/N:422166-0 Part No.: 422166-0 $1.53 Add To Cart 037 MAKITA LED CIRCUIT FOR CU180D P/N:620685-2 Part No.: 620685-2 $7.09 Add To Cart 038 MAKITA CORD CLAMP FOR MT410 BO4556 P/N:687123-7 Part No.: 687123-7 $0.33 Add To Cart 039 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 040 MAKITA LIGHT CASE COVER FOR CU180D P/N:319595-5 Part No.: 319595-5 $5.12 Add To Cart 041 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 042 MAKITA GUARD L FOR CU180D P/N:347279-5 Part No.: 347279-5 $5.78 Add To Cart 044 MAKITA BRAKE CALIPER ASSEMBLY FOR CU180D P/N:161641-8 Part No.: 161641-8 $32.16 Add To Cart 045 MAKITA BRAKE DISC FOR CU180D P/N:347208-8 Part No.: 347208-8 $11.34 Add To Cart 048 MAKITA FRONT TIRE ASSEMBLY FOR CU180D P/N:126734-8 Part No.: 126734-8 $589.15 Add To Cart 049 MAKITA FLAT WASHER 5 FOR 4100NH P/N:941102-2 Part No.: 941102-2 $0.22 Add To Cart 051 MAKITA FLAT WASHER 17 FOR HR166D P/N:253377-4 Part No.: 253377-4 $0.33 Add To Cart 054 MAKITA O RING 5 FOR 5277NB P/N:213005-3 Part No.: 213005-3 $0.22 Add To Cart 058 MAKITA LEAD UNIT FOR CU180D P/N:632K49-4 Part No.: 632K49-4 $13.52 Add To Cart 059 MAKITA POWER SUPPLY CORD UNIT FOR DCU180 P/N:699096-2 Part No.: 699096-2 $15.15 Add To Cart 061 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 062 MAKITA TERMINAL HOLDER FOR CU180D P/N:457629-7 Part No.: 457629-7 $2.94 Add To Cart 064 MAKITA CONTROLLER FOR DCU180 P/N:620675-5 Part No.: 620675-5 $321.11 Add To Cart 065 MAKITA BATTERY BOX ASSY FOR CU180D P/N:135934-9 Part No.: 135934-9 $20.17 Add To Cart 066 MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2 $3.92 Add To Cart 067 MAKITA CENTER CASE COMPLETE FOR CU180D P/N:144519-0 Part No.: 144519-0 $9.70 Add To Cart 068 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 069 MAKITA LEAD UNIT FOR CU180D P/N:632K50-9 Part No.: 632K50-9 $3.82 Add To Cart 070 MAKITA SUB CONTROLLER FOR DCU180 P/N:144520-5 Part No.: 144520-5 $14.39 Add To Cart 071 MAKITA BUZZER CIRCUIT FOR CU180D P/N:620684-4 Part No.: 620684-4 $16.46 Add To Cart 072 MAKITA COVER FOR CU180D P/N:457630-2 Part No.: 457630-2 $1.31 Add To Cart 074 MAKITA CORD CLAMP FOR MT410 BO4556 P/N:687123-7 Part No.: 687123-7 $0.33 Add To Cart 076 MAKITA FRONT COVER FOR CU180D P/N:457628-9 Part No.: 457628-9 $6.98 Add To Cart 077 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 080 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 081 MAKITA FLAT WASHER 5 FOR N3701 P/N:941101-4 Part No.: 941101-4 $0.11 Add To Cart 084 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 085 MAKITA FLAT WASHER 5 FOR N3701 P/N:941101-4 Part No.: 941101-4 $0.11 Add To Cart 087 MAKITA HEX BOLT M8X20 FOR CU180D P/N:251595-8 Part No.: 251595-8 $3.05 Add To Cart 088 MAKITA FLAT WASHER 5 FOR N3701 P/N:941101-4 Part No.: 941101-4 $0.11 Add To Cart 089 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 091 MAKITA HEX NUT M5 FOR 3612C Part No.: 931202-6 $0.11 Add To Cart 092 MAKITA HEX. BOLT M8X45 FOR LS1013 P/N:921467-8 Part No.: 921467-8 $0.55 Add To Cart 093 MAKITA HEX. LOCK NUT M8-13 FOR LS1212 P/N:252105-4 Part No.: 252105-4 $0.76 Add To Cart 100 MAKITA FLAT WASHER 5 FOR 4100NH P/N:941102-2 Part No.: 941102-2 $0.22 Add To Cart 101 MAKITA FLAT WASHER 17 FOR HR166D P/N:253377-4 Part No.: 253377-4 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA HANDLE COMPLETE FOR CU180D P/N:161640-0 Part No.: 161640-0
• 002: MAKITA BRAKE ASSEMBLY FOR CU180D P/N:161648-4 Part No.: 161648-4
• 003: MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9
• 004: MAKITA SWITCH BOX SET FOR CU180D P/N:183H15-1 Part No.: 183H15-1
• 005: MAKITA SWITCH LEVER FOR DCU180 P/N:457633-6 Part No.: 457633-6
• 006: MAKITA H.S.H. BOLT M5X16 WITH WR FOR EM2650UH P/N:922223-9 Part No.: 922223-9
• 008: MAKITA TORSION SPRING 11 P/N:233540-5 Part No.: 233540-5
• 009: MAKITA SWITCH PLATE FOR DCU180 P/N:144521-3 Part No.: 144521-3
• 010: MAKITA SWITCH BOX SET FOR CU180D P/N:183H15-1 Part No.: 183H15-1
• 011: MAKITA SWITCH FOR DUC353/DUH601-752 P/N:650781-2 Part No.: 650781-2
• 012: MAKITA HEX BOLT M8X20 FOR CU180D P/N:251595-8 Part No.: 251595-8
• 014: MAKITA SPRING WASHER 8 FOR 2414NB P/N:942201-3 Part No.: 942201-3
• 015: MAKITA FRAME ASSEMBLY FOR CU180D P/N:126589-1 Part No.: 126589-1
• 016: MAKITA FLAT WASHER 8 FOR LS1013 P/N:253852-0 Part No.: 253852-0
• 017: MAKITA POWER SUPPLY CORD UNIT FOR DCU180 P/N:699095-4 Part No.: 699095-4
• 019: MAKITA REAR TIME R ASSEMBLY FOR CU180D P/N:126893-8 Part No.: 126893-8
• 020: MAKITA GUARD R FOR CU180D P/N:347278-7 Part No.: 347278-7
• 021: MAKITA PACKING FOR CU180D P/N:422151-3 Part No.: 422151-3
• 022: MAKITA HEX. SOCKET HEAD BOLT M10X25 FOR 2012NB P/N:266240-2 Part No.: 266240-2
• 023: MAKITA FLAT WASHER 10 FOR N1923B P/N:941251-5 Part No.: 941251-5
• 024: MAKITA REAR TIRE L ASSY FOR CU180D P/N:126837-8 Part No.: 126837-8
• 025: MAKITA H.S.H. BOLT M5X16 WITH WR FOR EM2650UH P/N:922223-9 Part No.: 922223-9
• 026: MAKITA CLAMP A FOR CU180D P/N:347238-9 Part No.: 347238-9
• 027: MAKITA CLAMP B FOR CU180D P/N:347239-7 Part No.: 347239-7
• 028: MAKITA PLATE FOR CU180D P/N:347394-5 Part No.: 347394-5
• 029: MAKITA BAND FOR DCU180 P/N:687849-1 Part No.: 687849-1
• 030: MAKITA LIGHT CASE FOR CU180D P/N:319594-7 Part No.: 319594-7
• 031: MAKITA O RING 53 FOR HM1201 P/N:213656-2 Part No.: 213656-2
• 032: MAKITA REFLECTOR FOR CU180D P/N:457636-0 Part No.: 457636-0
• 033: MAKITA LENS FOR CU180D P/N:457634-4 Part No.: 457634-4
• 034: MAKITA O RING 50 FOR HR2010 Part No.: 213604-1
• 035: MAKITA COVER FOR CU180D P/N:457635-2 Part No.: 457635-2
• 036: MAKITA PACKING FOR CU180D P/N:422166-0 Part No.: 422166-0
• 037: MAKITA LED CIRCUIT FOR CU180D P/N:620685-2 Part No.: 620685-2
• 038: MAKITA CORD CLAMP FOR MT410 BO4556 P/N:687123-7 Part No.: 687123-7
• 039: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 040: MAKITA LIGHT CASE COVER FOR CU180D P/N:319595-5 Part No.: 319595-5
• 041: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 042: MAKITA GUARD L FOR CU180D P/N:347279-5 Part No.: 347279-5
