MAKITA DA3010F ANGLE DRILL 10MM SPARE PARTS

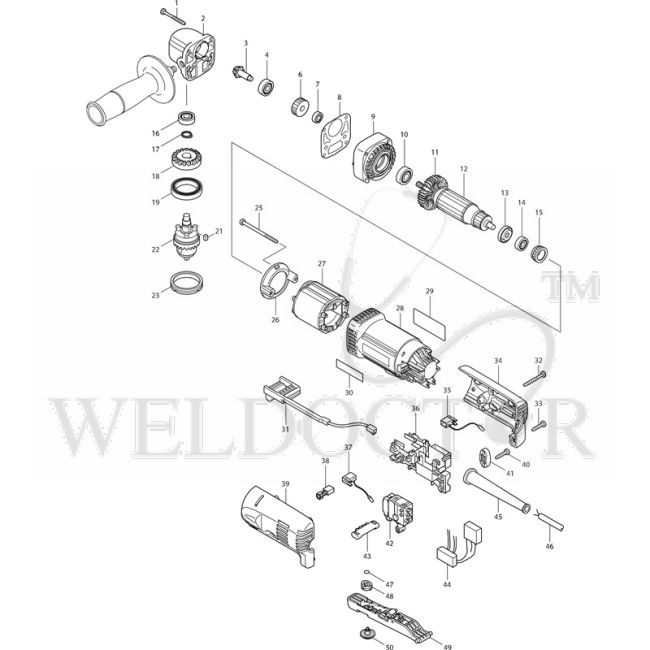

Spare Parts of Makita DA3010F Angle Drill Ref. No. Part Name & Number Price 001 MAKITA TAPPING SCREW M4X40 P/N:266048-4 Part No.: 266048-4 $0.44 Add To Cart 003 MAKITA SPIRAL BEVEL GEAR 9 FOR DA3010 P/N:227436-0 Part No.: 227436-0 $11.99 Add To Cart 006 MAKITA HELICAL GEAR 28 FOR DA3010 P/N:226567-2 Part No.: 226567-2 $12.54 Add To Cart 007 MAKITA BALL BEARING 696ZZ P/N:210026-6 Part No.: 210026-6 $3.27 Add To Cart 008 MAKITA GASKET FOR BDA351 P/N:418036-9 Part No.: 418036-9 $1.64 Add To Cart 010 MAKITA BALL BEARING 609LLB FOR HR2410 P/N:211051-0 Part No.: 211051-0 $2.94 Add To Cart 012 MAKITA ARMATURE FOR DA3010 P/N:517583-8 Part No.: 517583-8 $55.26 Add To Cart 013 MAKITA INSULATION WASHER FOR 4304 P/N:681636-0 Part No.: 681636-0 $0.33 Add To Cart 014 MAKITA BALL BEARING 607LLB FOR BTW201 / HR2410 P/N:211021-9 Part No.: 211021-9 $1.85 Add To Cart 015 MAKITA RUBBER RING 19 FOR HR2450/4304 P/N:421494-0 Part No.: 421494-0 $4.58 Add To Cart 017 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 018 MAKITA SPIRAL BEVEL GEAR 26 FOR DA3010 P/N:227437-8 Part No.: 227437-8 $24.20 Add To Cart 021 MAKITA KEY 4 FOR 8416 P/N:254201-4 Part No.: 254201-4 $0.55 Add To Cart 023 MAKITA BEARING RETAINER 36-43 FOR DA3010 P/N:285842-5 Part No.: 285842-5 $3.05 Add To Cart 027 MAKITA FIELD FOR DA3010 P/N:635078-0 Part No.: 635078-0 $18.42 Add To Cart 028 MAKITA MOTOR HOUSING FOR DA3010F P/N:183560-8 Part No.: 183560-8 $14.17 Add To Cart 032 MAKITA TAPPING SCREW FLANGE PT 4X35 FOR 4323M P/N:266053-1 Part No.: 266053-1 $0.44 Add To Cart 033 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 036 MAKITA SUPPORT FOR DA3010F P/N:687139-2 Part No.: 687139-2 $2.62 Add To Cart 039 MAKITA CARBON BRUSH CB-419 Part No.: 191962-4 $3.75 Add To Cart 040 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 041 MAKITA STRAIN RELIEF FOR 5806B P/N:687063-9 Part No.: 687063-9 $0.44 Add To Cart 042 MAKITA SWITCH TG803BSA-A FPR DA3010 P/N:650539-9 Part No.: 650539-9 $26.05 Add To Cart 043 MAKITA F/R CHANGE LEVER FOR DA3010F P/N:418038-5 Part No.: 418038-5 $1.09 Add To Cart 044 MAKITA POWER SUPPLY CIRCUIT FOR DA3010F P/N:631527-5 Part No.: 631527-5 $14.06 Add To Cart 045 MAKITA CORD GUARD 8 FOR 6823/PV7000C P/N:682559-5 Part No.: 682559-5 $0.76 Add To Cart 046 MAKITA POWER S.CORD BASEC CORD P/N:692021-2 Part No.: 692021-2 $9.92 Add To Cart 047 MAKITA O RING 3 FOR DA3010 P/N:213034-6 Part No.: 213034-6 $0.22 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA TAPPING SCREW M4X40 P/N:266048-4 Part No.: 266048-4
• 003: MAKITA SPIRAL BEVEL GEAR 9 FOR DA3010 P/N:227436-0 Part No.: 227436-0
• 006: MAKITA HELICAL GEAR 28 FOR DA3010 P/N:226567-2 Part No.: 226567-2
• 007: MAKITA BALL BEARING 696ZZ P/N:210026-6 Part No.: 210026-6
• 008: MAKITA GASKET FOR BDA351 P/N:418036-9 Part No.: 418036-9
• 010: MAKITA BALL BEARING 609LLB FOR HR2410 P/N:211051-0 Part No.: 211051-0
• 012: MAKITA ARMATURE FOR DA3010 P/N:517583-8 Part No.: 517583-8
• 013: MAKITA INSULATION WASHER FOR 4304 P/N:681636-0 Part No.: 681636-0
• 014: MAKITA BALL BEARING 607LLB FOR BTW201 / HR2410 P/N:211021-9 Part No.: 211021-9
• 015: MAKITA RUBBER RING 19 FOR HR2450/4304 P/N:421494-0 Part No.: 421494-0
• 017: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 018: MAKITA SPIRAL BEVEL GEAR 26 FOR DA3010 P/N:227437-8 Part No.: 227437-8
• 021: MAKITA KEY 4 FOR 8416 P/N:254201-4 Part No.: 254201-4
• 023: MAKITA BEARING RETAINER 36-43 FOR DA3010 P/N:285842-5 Part No.: 285842-5
• 027: MAKITA FIELD FOR DA3010 P/N:635078-0 Part No.: 635078-0
• 028: MAKITA MOTOR HOUSING FOR DA3010F P/N:183560-8 Part No.: 183560-8
• 032: MAKITA TAPPING SCREW FLANGE PT 4X35 FOR 4323M P/N:266053-1 Part No.: 266053-1
• 033: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 036: MAKITA SUPPORT FOR DA3010F P/N:687139-2 Part No.: 687139-2
• 039: MAKITA CARBON BRUSH CB-419 Part No.: 191962-4
• 040: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 041: MAKITA STRAIN RELIEF FOR 5806B P/N:687063-9 Part No.: 687063-9
• 042: MAKITA SWITCH TG803BSA-A FPR DA3010 P/N:650539-9 Part No.: 650539-9
• 043: MAKITA F/R CHANGE LEVER FOR DA3010F P/N:418038-5 Part No.: 418038-5
• 044: MAKITA POWER SUPPLY CIRCUIT FOR DA3010F P/N:631527-5 Part No.: 631527-5
• 045: MAKITA CORD GUARD 8 FOR 6823/PV7000C P/N:682559-5 Part No.: 682559-5
• 046: MAKITA POWER S.CORD BASEC CORD P/N:692021-2 Part No.: 692021-2
• 047: MAKITA O RING 3 FOR DA3010 P/N:213034-6 Part No.: 213034-6
