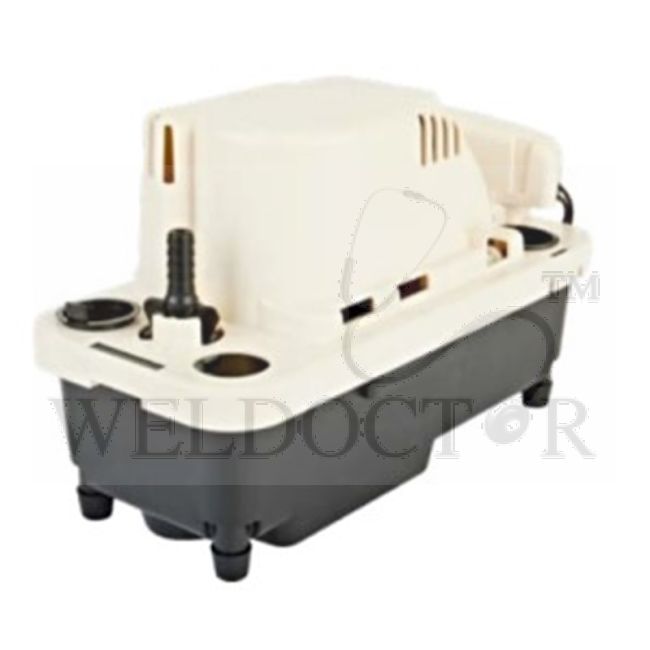

LITTLE GIANT PUMP #554631 VCMA-20ULS-PRO

This VCMA-20OULS has the ability to collect 1/2 gal. of condensate. Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment. 1/30 HP high performance 230-volt motor ABS tank, motor cover and volute 1/2 gal. tank capacity Stainless steel pump shaft Snap-action pump switch Removable 3/8 in. barbed check valve Safety switch included 10-12mm tubbing When the float raise to the maximum water level, it will activate the pump to run As the float sink to minimum water level, the pump will stop. Usage: 1 hour interval

Brand: VCMA-20ULS-PRO

Specifications:

• NO BRAND: VCMA-20ULS-PRO
• Maximum Pumping Height (ft.): 17
• Product Depth (in.): 11
• Product Height (in.): 7.03
• Product Width (in.): 5
• Amperage (amps): 0.5
• Bypass Valve Included: No
• Bypass Valve Required: No
• Cord Length (ft.): 6
• HorsePower (hp): .03 hp
• Housing Material: Thermoplastic
• Inlet Connection: Plain end
• Maximum Discharge FLow (gAllons/hour): 48
• Maximum Discharge Pressure (psi): 7.4
• Outlet Connection: Barb/rib
• Power Type Required: AC
• Product Weight (lb.): 5 lb
• Self-PriMing: Yes
• Tank Capacity (gAllons): 0.5
• Voltage (volts): 230
