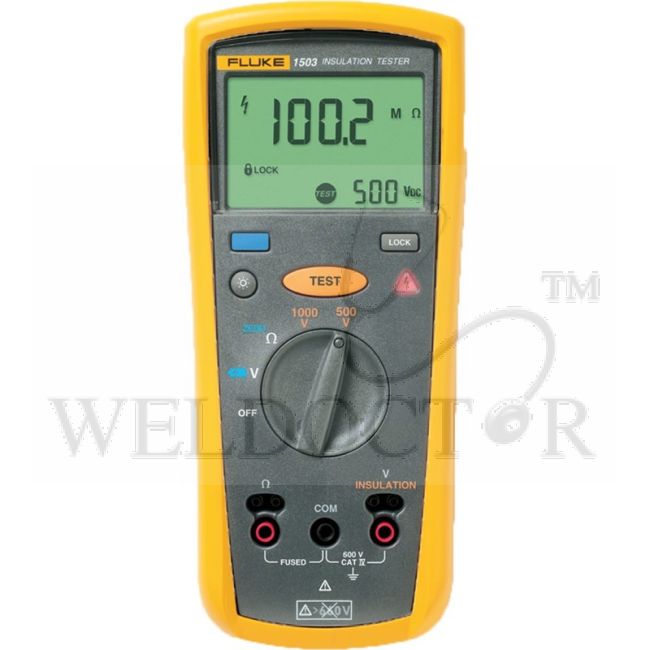

FLUKE INSULATION TESTER 1503

The Fluke 1503 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications. Additional features, like the remote probe on this tool save both time and money when performing tests.

Specifications:

• Maximum Voltage applied to any Terminal:: 600 V AC rms or DC
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Temperature coefficient: 0.05 x (specified accuracy) per °C For Temperatures < 18°C or > 28°C (< 64°F or > 82°F)
• Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
• Shock: 1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
• Electromagnetic compatibility: In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)
• Safety: Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No. 61010-1-04, and IEC/EN 61010-1 2nd Edition For measurement category IV 600 V (CAT IV)
• Batteries: Four AA batteries (NEDA 15A or IEC LR6)
• Battery llife: Insulation test use:
• Size (H x W x L): 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
• Weight: 550 g (1.2 lb)
• IP rating: IP40
• Altitude: Operating
• Over-range capability: 110% of range
• Name: File Type
• Fluke 1507/1503 Users Manual: .pdf
