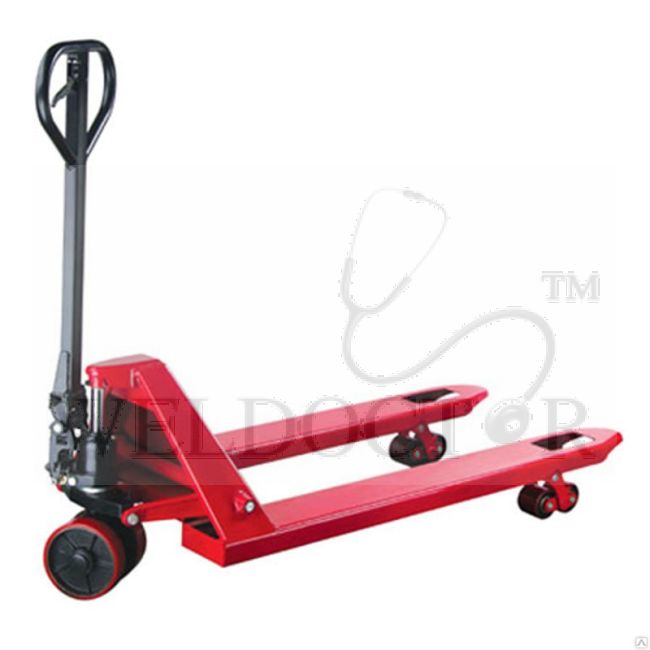

BOKE PALLET TRUCK 5TON

High reliability and long service lift of 5 years. Double lifting speed when loads under 600kg, which turns back to regular speed when above it. Impact free lifting ensures safety og cargo loading. The lifting system is equipped with overloading protection valve to ensure the safe operation. The utilized structural design gurantees the convenience of assembling and disassembling. Light-Weight fork frame, made from high rigidity steel plate. Compact appearance, innovative separated Rock Arm, ensure he whole truck evenly pressed. There is a finger hole in the connection of handle and pump, which is easy to assemble.

Brand: 3M

Specifications:

• Capacity: 5000kg
• Lowered Fork Height: 88mm
• Steering wheel: 200m
• Fork wheel Single: ~
• Fork wheel tandem: 85x80mm
• Max. lift Height: 205mm
• Total Height: 1253mm
• Overall Length: 1614mm
• Fork Length: 1220mm
• Width Overall Forks: 685mm
• Ground clearance, centre of wheelbase: 24mm
• Aisle width For Pallets 1000x1200 crossways: 1814mm
• Aisle width For Pallets 800x1200 Lengthways: 1814mm
• Turning radius: 1370mm
• Service Weight: 103kg
